Industrial Hose

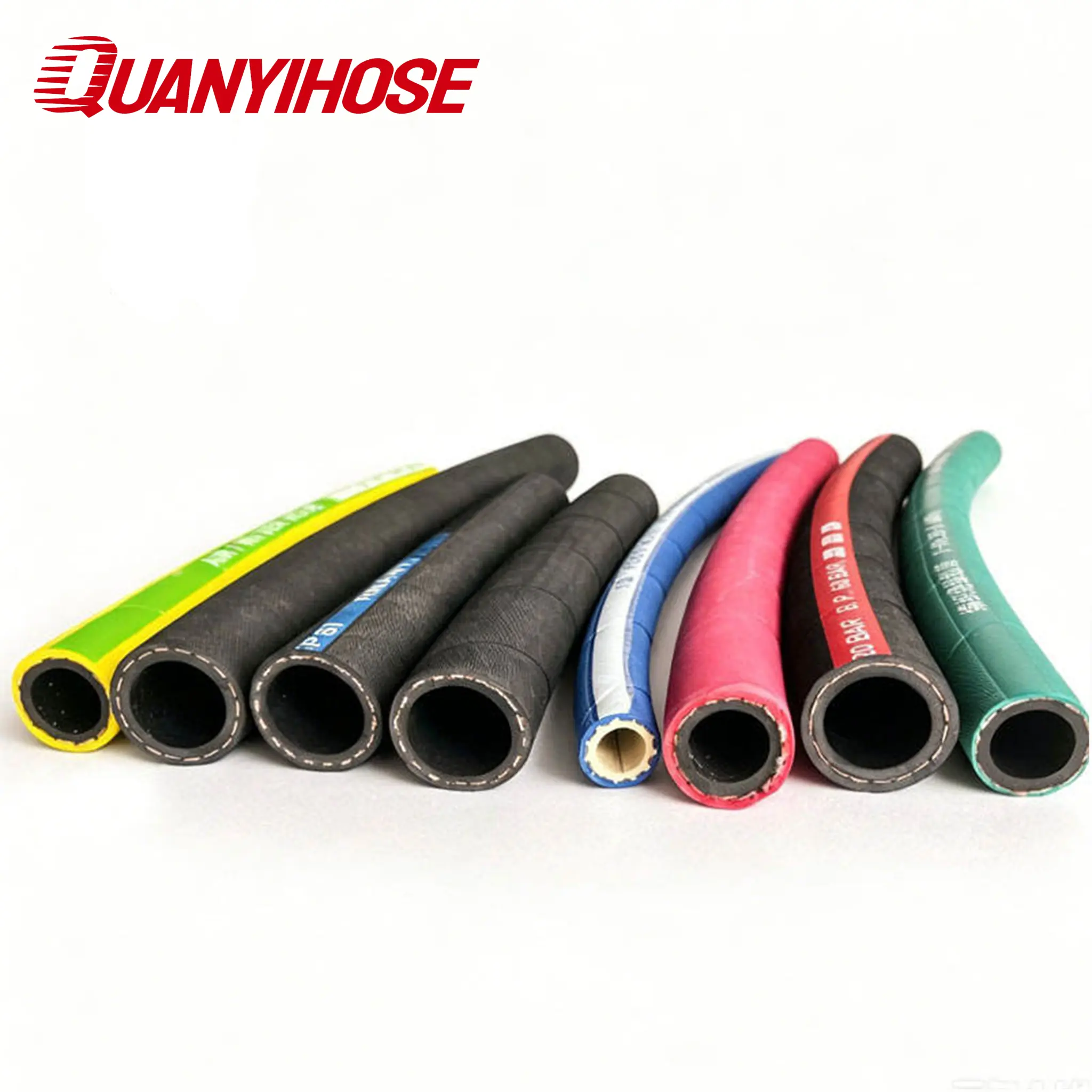

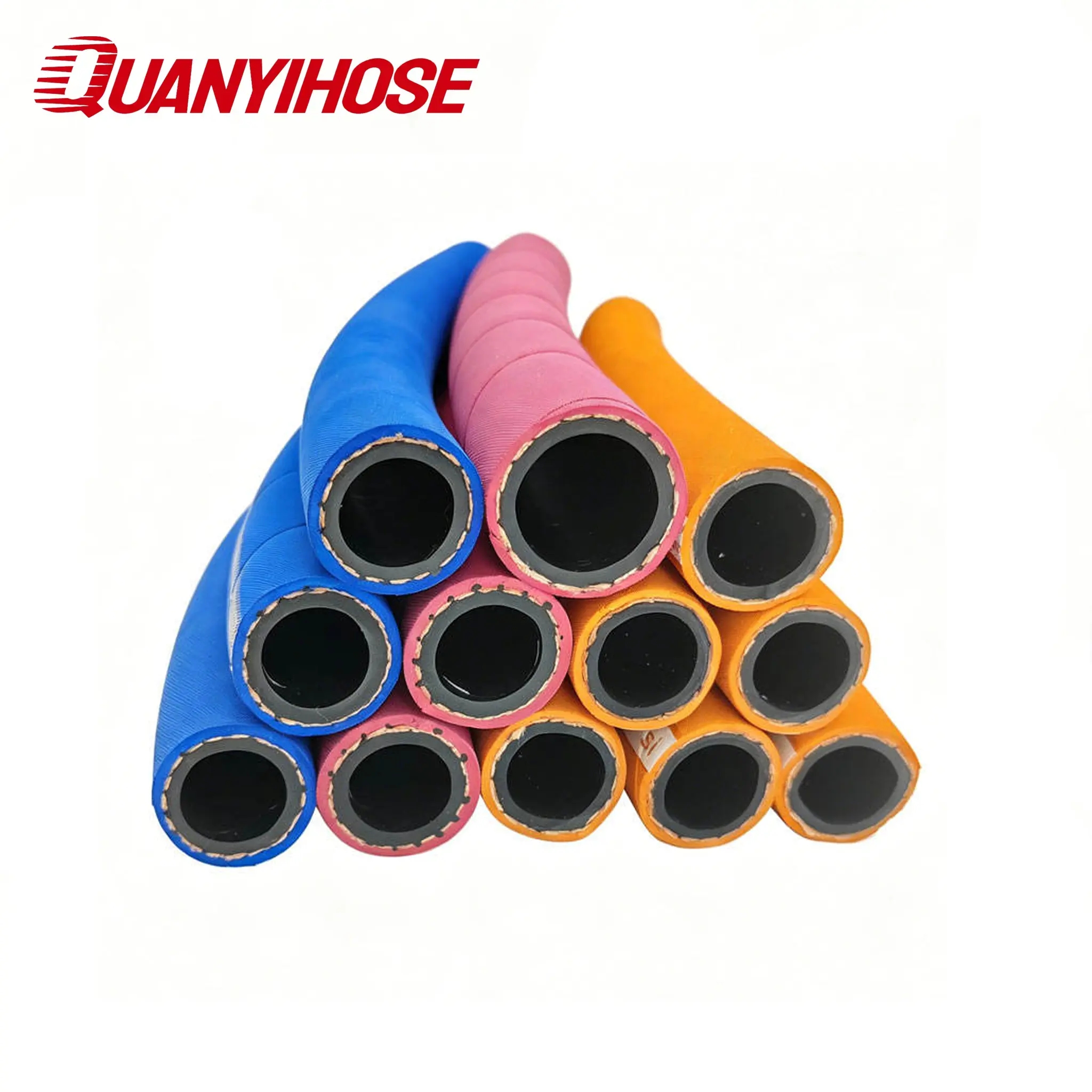

EPDM Air & Water Industrial Hose
Versatile EPDM rubber hose for air, water and light chemical transfer.
Quick Specifications
| Inner Tube: EPDM synthetic rubber | Reinforcement: Synthetic fiber braid (or steel wire for higher pressure)|Cover: EPDM synthetic rubber, abrasion & ozone resistant|Temperature: -30°C to +100°C|Inside Diameter: 1/4" to 4"|Working Pressure: 10 to 25 bar|Length: 50ft / 100ft / custom|Color: Black, Red, Blue, Yellow (custom)|Standard: ISO 1307 |
|---|
SAE / DIN / EN Standards
100% Proof Tested
OEM Branding Available
MOQ Flexible
Overview
Product Overview
The EPDM air & water hose is a multi-purpose industrial hose for compressed air, water and mild chemicals. EPDM rubber offers excellent weather, ozone and heat resistance, making it ideal for outdoor industrial service. Available in fabric-braided or steel-wire-reinforced variants.
Key Features
Key Features
- EPDM compound with excellent ozone, weather and heat resistance
- Multi-purpose service: compressed air, water, mild chemicals and sprays
- Available in textile-braid or steel-wire-reinforced constructions
- Wide ID range from 1/4" to 4" for plant and field applications
- Color options for fluid identification: black, red, blue, yellow
- Meets ISO 1307 dimensional tolerances for industrial hose
Applications
Applications
Applications:
- Compressed air lines
- Industrial water transfer
- Light chemical service
- Agricultural spraying
- Construction site water supply
Advantages
Why Choose This Product
Manufactured to ISO 1307 with full batch traceability
100%% proof pressure tested before shipment
Weather-resistant cover rated for outdoor service
OEM branding, custom colors and packaging available
Low MOQ for sampling with rapid scale-up to bulk orders
Stable lead times from Hengshui factory
Technical Data
Technical Specifications
| Inner Tube: EPDM synthetic rubber | Reinforcement: Synthetic fiber braid (or steel wire for higher pressure)|Cover: EPDM synthetic rubber, abrasion & ozone resistant|Temperature: -30°C to +100°C|Inside Diameter: 1/4" to 4"|Working Pressure: 10 to 25 bar|Length: 50ft / 100ft / custom|Color: Black, Red, Blue, Yellow (custom)|Standard: ISO 1307 |
|---|
FAQ
Frequently Asked Questions
Can this hose handle compressed air at 10 bar?
Yes. The standard EPDM air & water hose is rated for 10-25 bar working pressure depending on size and reinforcement. For high-cyclic air service, specify the steel-wire-reinforced variant for longer fatigue life.
Is EPDM suitable for outdoor exposure?
Yes. EPDM has excellent ozone and UV resistance and is the preferred compound for outdoor industrial service. It does not crack or degrade like SBR or natural rubber when exposed to sunlight and weather.
Can I use this hose for chemicals?
EPDM is compatible with many mild chemicals, acids and alkalis. It is NOT compatible with petroleum oils, fuels or solvents. For oil service use NBR; for solvents contact our engineers for compound selection.
What colors are available?
Standard colors are black, red, blue and yellow. Custom colors are available for OEM branding and fluid identification (e.g. red for fire, blue for water, yellow for gas). MOQ applies for custom colors.
Do you cut to length and assemble fittings?
Yes. We supply cut lengths, pre-fitted with camlock, Bauer, flange or threaded fittings per your BOM. Send your assembly specification for a quotation.
Request a Quote
Get a Quotation for EPDM Air & Water Industrial Hose
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
