Food Grade Hose

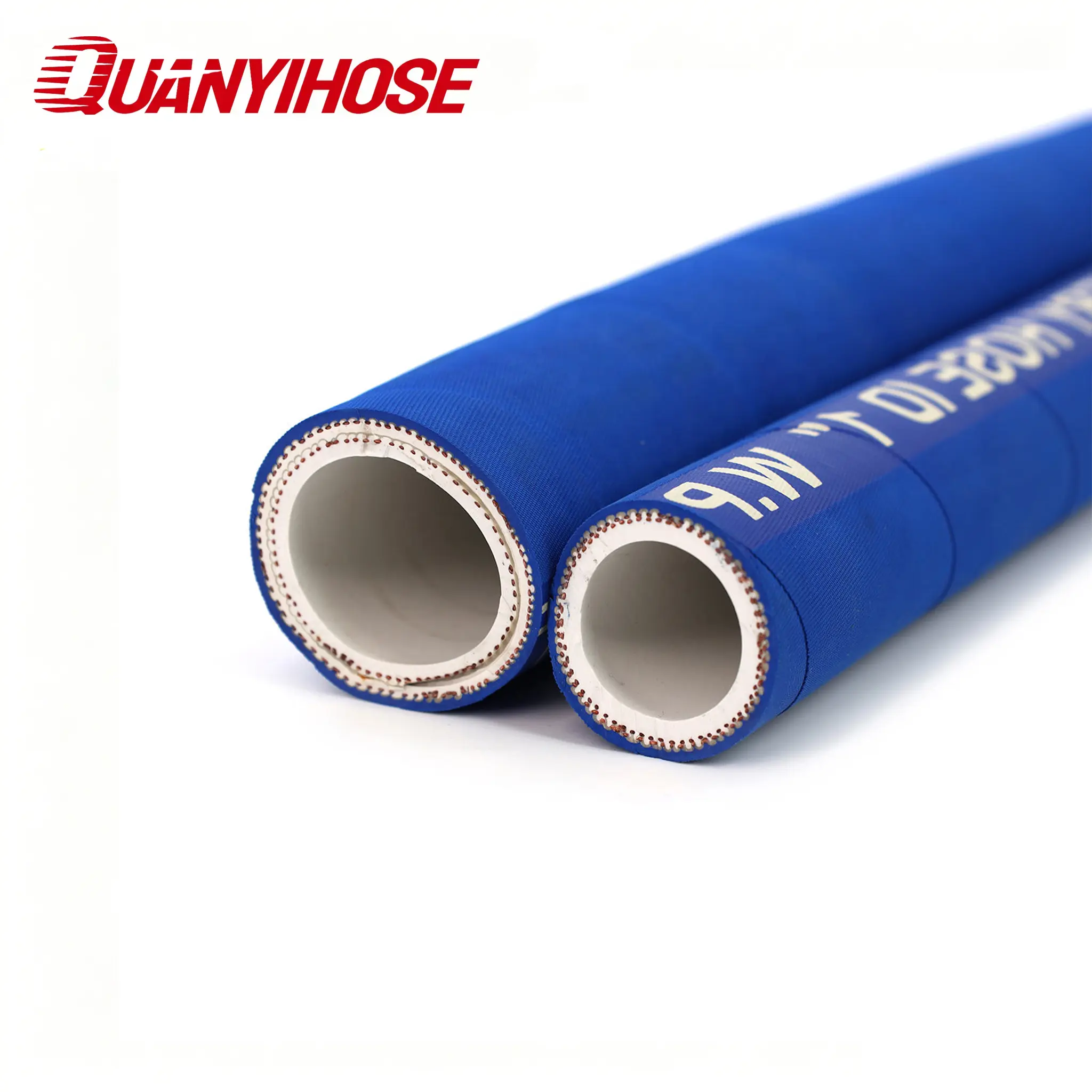

EPDM Food Grade Suction and Discharge Rubber Hose
Our food-grade EPDM rubber hose is specifically designed for the hygienic transfer of edible liquids, beverages, dairy products, and food oils.
Quick Specifications
| Inner Diameter Range | 1/4" to 12" (6 mm to 300 mm) |
|---|---|
| Inner Rubber Layer | Food-Grade EPDM Rubber (Non-Toxic, Taste-Free, Odorless) |
| Outer Rubber Layer | Heat, Weather & Washdown-Resistant EPDM Rubber |
| Reinforcement Layer | High-Tensile Cord Winding + Helix Spiral Steel Wire |
| Working Pressure (WP) | 10 Bar to 20 Bar (150 PSI to 300 PSI) |
| Burst Pressure (BP) | 15 Bar to 60 Bar (depending on size) |
SAE / DIN / EN Standards
100% Proof Tested
OEM Branding Available
MOQ Flexible
Overview
Product Overview
The EPDM Food Grade Rubber Hose provides a reliable, ultra-clean liquid transfer solution tailored for the food, beverage, brewery, and dairy industries. Engineered to convey drinking water, spirits, liquor, beer, wine, fruit juices, soy sauce, vinegar, liquid dairy products, as well as vegetable oils (such as soybean, peanut, and rapeseed oils), this hose guarantees that transferred media retain their natural taste and color without chemical contamination.
Constructed with a non-toxic, taste-free white or clear EPDM rubber inner lining, the hose resists bacteria buildup and easily withstands steam cleaning and thermal sterilization up to +180°C. The reinforcement layer combines high-tensile synthetic cord winding with an embedded spiral steel wire, allowing the hose to handle dynamic positive pressures up to 20 Bar (300 PSI) as well as full negative pressure suction down to -80 kPa without wall collapse.
The smooth, durable EPDM outer rubber cover (available in blue, green, black, or custom colors) offers excellent resistance to heat, abrasion, ozone, and frequent washdowns. Fully compliant with GB4806.1 food contact safety standards, this hose is the ideal choice for sanitary food processing facilities, bottling lines, and liquid food transport tankers.
Key Features
Key Features
- Special food-grade EPDM compound ensuring zero odor, taste, or color transfer to beverages
- Fully compliant with national GB4806.1 hygiene standards for food contact rubber materials
- Wide working temperature resistance from -40°C up to +180°C for CIP steam cleaning
- Available in dual options: positive delivery pressure (up to 20 Bar) and negative vacuum suction (-80 kPa)
- Reinforced with synthetic cord and spiral steel wire to prevent kinking under suction
- Smooth inner tube lining designed to prevent bacterial accumulation and facilitate easy rinsing
- Durable EPDM outer cover available in bright sanitary colors (blue/green/black) for easy identification
Structure
Hose Structure
Inner Layer: Smooth, non-contaminating white/black EPDM food-grade rubber
Reinforcement: Multi-ply high-strength tire cord plies with helical steel wire reinforcement
Outer Layer: Weather-, ozone-, and heat-resistant EPDM rubber compound (wrapped finish)
Applications
Applications
Brewery, Winery, and Spirits Distillery Liquid Transfer Lines
Dairy Plant Milk, Cream, and Liquid Beverage Processing
Fruit Juice, Soft Drink, and Bottled Water Production Lines
Soy Sauce, Vinegar, and Liquid Condiment Conveying Systems
Edible Oil Transfer (Soybean, Peanut, Rapeseed & Vegetable Oils)
Sanitary Food Transport Tankers and Bulk Liquid Loading Bays
Advantages
Why Choose This Product
High temperature tolerance up to +180°C enables thorough inline steam sterilization and hot water washdown
Versatile capability handles both water-based beverages and fatty edible oils in one hose series
Kink-proof spiral wire carcass maintains full volumetric flow rate during high-vacuum pump operation
Odorless and non-reactive formulation preserves the pristine flavor profile of premium wines and spirits
Extensive size range (1/4" to 12") and customizable colors to suit specialized food plant layouts
Technical Data
Technical Specifications
| Inner Diameter Range | 1/4" to 12" (6 mm to 300 mm) |
|---|---|
| Inner Rubber Layer | Food-Grade EPDM Rubber (Non-Toxic, Taste-Free, Odorless) |
| Outer Rubber Layer | Heat, Weather & Washdown-Resistant EPDM Rubber |
| Reinforcement Layer | High-Tensile Cord Winding + Helix Spiral Steel Wire |
| Working Pressure (WP) | 10 Bar to 20 Bar (150 PSI to 300 PSI) |
| Burst Pressure (BP) | 15 Bar to 60 Bar (depending on size) |
| Safety Factor | 3:1 Safety Ratio |
| Vacuum Suction Rating | Up to -80 kPa (-0.8 Bar) for suction & discharge types |
| Working Temperature | -40°C to +180°C (-40°F to +356°F) |
| Sanitary Hygiene Standard | GB4806.1 Food Contact Rubber Standard & Q/YMC0122 |
| Cover Color Options | Blue, Green, Black, or Customized |
| Standard Lengths | 10m, 20m, 40m, 60m, 100m, 120m per coil |
FAQ
Frequently Asked Questions
Is this EPDM food hose suitable for fatty food products like edible oils?
Yes, it is specially formulated to handle vegetable oils including soybean oil, peanut oil, and rapeseed oil as well as liquid beverages.
Can this hose be sterilized with hot water or steam?
Yes, the EPDM rubber compound withstands operating temperatures from -40°C up to +180°C, making it suitable for CIP steam and hot water cleaning.
Does the hose affect the taste or odor of wine, beer, or dairy products?
No, the inner tube uses a non-contaminating EPDM compound that guarantees zero odor or taste migration into transferred liquids.
What is the vacuum suction rating for the suction & discharge version?
The suction and discharge variant features an embedded spiral steel wire that supports a negative pressure rating up to -80 kPa without tube collapse.
Are custom outer colors and continuous lengths available?
Yes, we offer outer cover colors in blue, green, black, or custom shades, with continuous coil lengths up to 120 meters depending on hose diameter.
