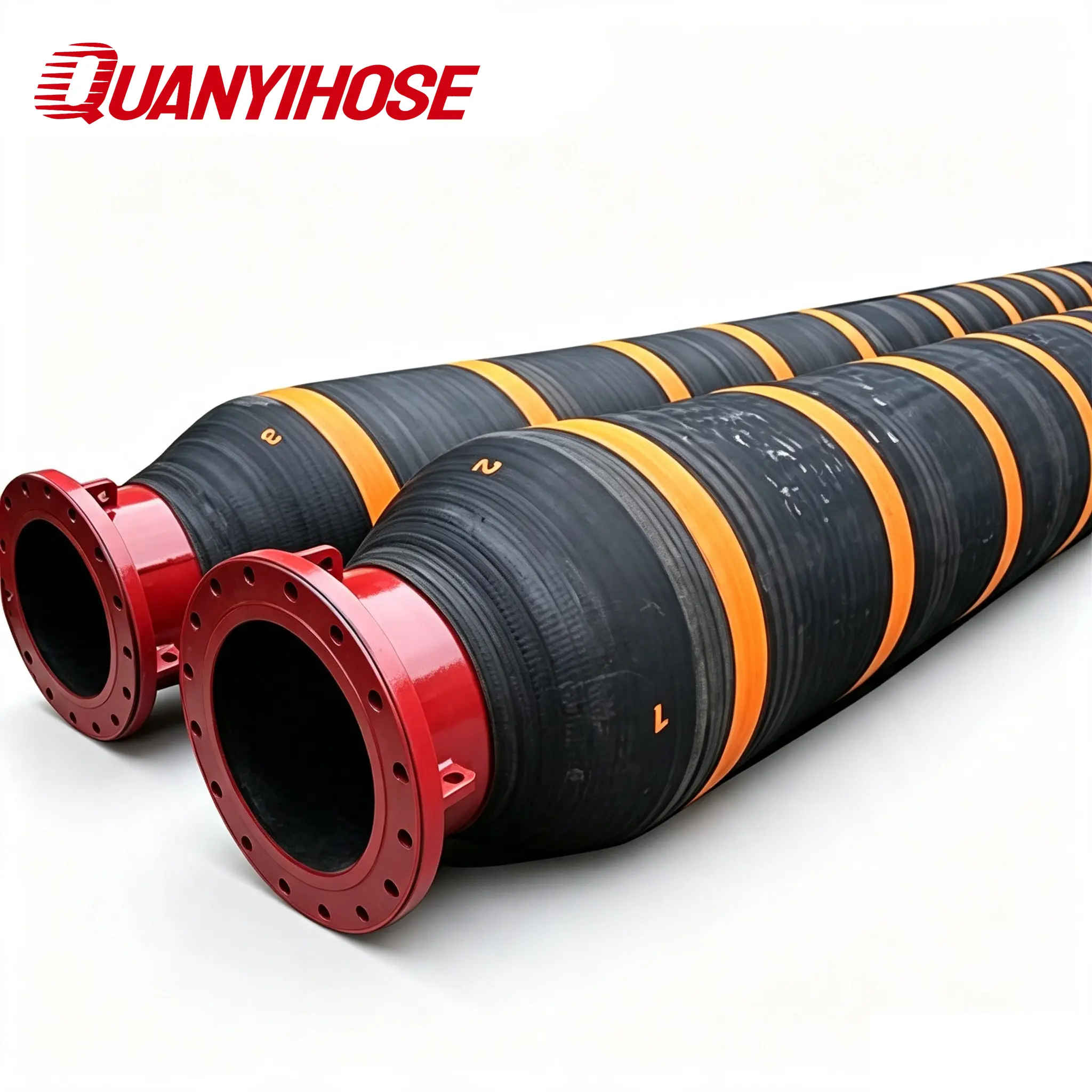

Floating Reducer Hose - Single Carcass
Engineered for offshore crude oil transfer, marine bunkering, and heavy-duty marine dredging, our single carcass floating reducer hose provides a seamless flexible transition between two pipeline sections of different diameters.
Quick Specifications
| Inner Diameter Range (Bore Reduction) | Customized (e.g., 24" to 20", 20" to 16", 16" to 12" / 300mm to 600mm) |
|---|---|
| Inner Lining Compound | Oil-Resistant NBR / Synthetic Rubber (Aromatic Content up to 50%) |
| Reinforcement Layer | Multi-Ply High-Tensile Tire Cord + Helical Steel Wire Reinforcement |
| Reserve Buoyancy Layer | Integrated Closed-Cell Synthetic Foam (Zero Water Absorption) |
| Outer Cover Compound | Heavy-Duty EPDM Rubber (Abrasion, Seawater, UV & Ozone Resistant) |
| Working Pressure (WP) | 15 Bar to 21 Bar (215 PSI to 300 PSI) |
Overview
Product Overview
The Floating Reducer Hose (Single Carcass) by Quanyi Rubber is a specialized marine oil and fluid transfer hose designed to connect pipeline systems with differing inner diameters while maintaining self-buoyant surface positioning. Specifically engineered for demanding offshore environments—such as Single Point Mooring (SPM) facilities, FPSO offshore loading terminals, and heavy-duty marine dredging operations—this hose eliminates the need for external buoy attachment.
Manufactured with a high-grade synthetic rubber inner lining tailored for crude oil, liquid hydrocarbons, refined fuels, or abrasive slurry, the tube provides superior oil and wear resistance. The structural carcass is reinforced with multiple plies of high-tenacity tire cord and helical steel wire, offering high tensile strength, kink resistance, and full vacuum capability.
The floating carcass incorporates a specialized closed-cell foam layer that absorbs zero water, ensuring persistent reserve buoyancy even if the tough outer cover suffers localized surface damage. Wrapped in an age-, ozone-, UV-, and seawater-resistant EPDM outer rubber cover, the hose withstands severe wave motion, constant rubbing, and marine environmental exposure. Equipped with integrated built-in steel flanges, Quanyi floating reducer hoses ensure maximum operational safety and seamless diameter transition in offshore liquid logistics.
Key Features
Key Features
- Reducer design provides a smooth internal flow transition between different pipeline sizes
- Integrated closed-cell foam layer provides minimum 20% reserve buoyancy without absorbing water
- Single carcass construction offers high flexibility, excellent fatigue resistance, and lighter handling
- Multi-ply tire cord and spiral steel wire reinforcement ensure full vacuum and burst safety
- Heavy-duty oil-resistant inner lining handles crude oil, refined petroleum, and seawater slurry
- Seawater-, UV-, and ozone-resistant EPDM outer cover protects against ocean weathering and abrasion
- Precision built-in forged steel flanges ensure 100% leak-proof connection integrity under heavy wave action
Structure
Hose Structure
Inner Tube: Smooth oil and hydrocarbon resistant synthetic rubber compound
Reinforcement: Plies of synthetic textile cord with embedded heavy steel wire helix
Buoyancy Body: Lightweight closed-cell polyethylene foam buoyancy layer
Outer Cover: Weather, ocean sunlight, and abrasion-resistant orange/black EPDM rubber cover
Applications
Applications
Offshore SPM (Single Point Mooring) and CALM Buoy Discharge Lines
FPSO (Floating Production Storage and Offloading) Tandem Crude Oil Loading
Marine Oil Tanker and Bunkering Pipeline Diameter Transition
Offshore Dredging, Sand Slurry Discharge, and Marine Mining Systems
Subsea Pipeline to Surface Floating Line Connection Interfaces
Advantages
Why Choose This Product
Technical Data
Technical Specifications
| Inner Diameter Range (Bore Reduction) | Customized (e.g., 24" to 20", 20" to 16", 16" to 12" / 300mm to 600mm) |
|---|---|
| Inner Lining Compound | Oil-Resistant NBR / Synthetic Rubber (Aromatic Content up to 50%) |
| Reinforcement Layer | Multi-Ply High-Tensile Tire Cord + Helical Steel Wire Reinforcement |
| Reserve Buoyancy Layer | Integrated Closed-Cell Synthetic Foam (Zero Water Absorption) |
| Outer Cover Compound | Heavy-Duty EPDM Rubber (Abrasion, Seawater, UV & Ozone Resistant) |
| Working Pressure (WP) | 15 Bar to 21 Bar (215 PSI to 300 PSI) |
| Design Burst Pressure | 5:1 Safety Factor (Burst Pressure ≥ 5 x W.P) |
| Operating Temperature | -20°C to +82°C (-4°F to +180°F) |
| End Fittings | Built-In Steel Flanges (ANSI 150#, 300#, ASME, or Custom Marine Flanges) |
| Manufacturing Standard | OCIMF (Oil Companies International Marine Forum) / ISO 28041 Guidelines |
FAQ
Frequently Asked Questions
What is the primary function of a floating reducer hose in offshore operations?
Will the hose sink if the outer rubber cover gets damaged by sea debris?
What fluid media can be conveyed through this reducer hose?
What pressure ratings and safety factors do these marine hoses meet?
Are flange connections customizable to match existing SPM or FPSO manifolds?
Request a Quote
Get a Quotation for Floating Reducer Hose - Single Carcass
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
