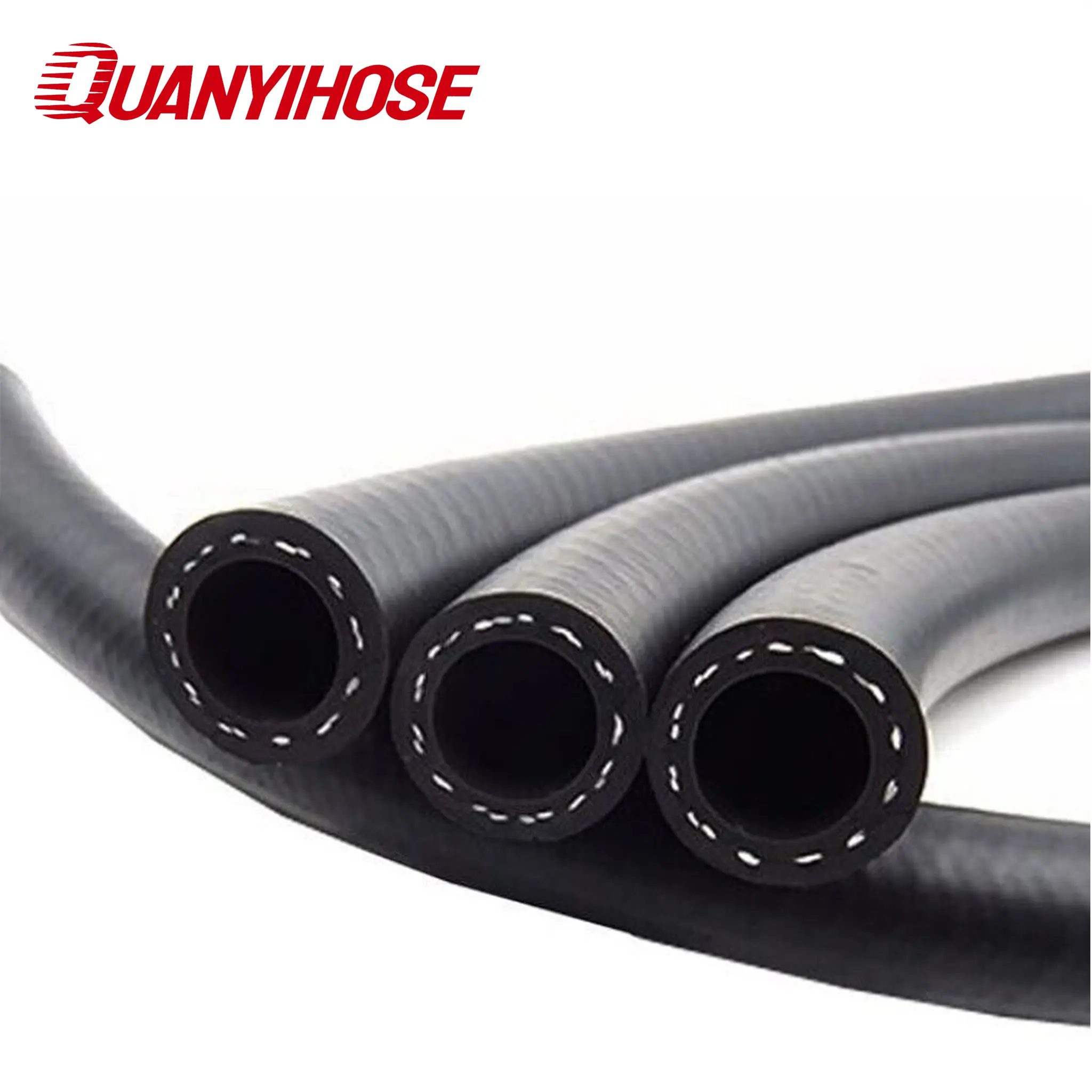

Fuel Hose (Nitrile Fuel & Oil Delivery Hose)
Engineered for safe and efficient conveyancing of refined petroleum products, our heavy-duty fuel transfer hose handles gasoline, diesel, biodiesel, kerosene, and lubrication oils.
Quick Specifications
| Inner Diameter Range | 1/2" to 2" (13 mm to 51 mm) |
|---|---|
| Inner Tube Material | Oil- & Fuel-Resistant Nitrile Rubber (NBR) |
| Outer Cover Material | Weather, UV & Abrasion Resistant Synthetic Rubber (NBR/PVC) |
| Reinforcement Layer | High-Tensile Synthetic Cord Plies + Built-In Copper Static Wire |
| Working Pressure (WP) | 20 Bar / 300 PSI (Customizable up to 20 Bar) |
| Burst Pressure (BP) | 60 Bar / 900 PSI (3:1 Safety Ratio) |
Overview
Product Overview
The Fuel Transfer Hose by Quanyi Rubber is a premium flexible hose designed specifically for bulk fuel conveyance and industrial oil delivery operations. Engineered for high durability and continuous fluid flow, this hose exhibits excellent resistance to light petroleum products, aromatic hydrocarbons, unleaded gasoline, diesel, kerosene, and oil-water emulsions.
Constructed with a smooth, non-swelling Nitrile (NBR) inner rubber tube, the hose maintains structural integrity and prevents internal diameter narrowing during prolonged contact with aggressive fuels. To guarantee operational safety and prevent static electricity accumulation caused by high-velocity oil flow, the reinforcement carcass is built with high-tenacity synthetic textile cords integrated with copper anti-static wires.
Protected by an abrasion- and weather-resistant synthetic rubber outer cover, the hose withstands severe ground dragging, UV sunlight exposure, ozone aging, and oil splatters. Operating reliably across extreme temperature ranges from -40°C to +150°C, Quanyi fuel transfer hoses provide maximum reliability for bulk fuel transportation, mobile tanker delivery, and industrial engine fuel lines.
Standard: SAE J 30R6/R7/R9/R10 DIN 73379 Type 2A
Appliable Liquid: Gasoline, Diesel, Hydraulic and Machinery oil and Lubricating oil , E10, E20, E55,E85 for passanger cars, diesel vehicles and other fuel supply system .
Certificate: ISO/TS 16949:2009
Temperature: -40℃ ~ +150℃ -40°F ~ +300°F
Application: Gasoline Engine ,Diesel Engine , Mechanical Lubrication System
| I.D | O.D | W.P | B.P | L | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m | kg/m |
| 3/16" | 5 | 12 | 20 | 300 | 60 | 900 | 100 | 0.15 |
| 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 | 0.17 |
| 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 | 0.22 |
| 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 | 0.25 |
| 1/2" | 13 | 22 | 20 | 300 | 60 | 900 | 100 | 0.46 |
| 5/8" | 16 | 25 | 20 | 300 | 60 | 900 | 50 | 0.52 |
| 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 50 | 0.64 |
| 1" | 25 | 36 | 20 | 300 | 60 | 900 | 50 | 0.85 |
| 1-1/4" | 32 | 43 | 10 | 150 | 30 | 450 | 50 | 1.20 |
| 1-1/2" | 38 | 50 | 10 | 150 | 30 | 450 | 50 | 1.39 |
| 2" | 51 | 65 | 10 | 150 | 30 | 450 | 50 | 1.80 |
Key Features
Key Features
- Premium NBR inner tube resists swelling and cracking when exposed to gasoline and diesel
- Integrated copper anti-static wire safely dissipates electrostatic build-up during fluid flow
- High-tensile cord reinforcement offers high pressure capability (20 Bar W.P.) with kink resistance
- Rugged outer cover protects against external abrasion, oil splatters, ozone, and UV sunlight
- Flexible construction maintains ease of handling down to sub-zero temperatures (-40°C)
- Smooth internal bore minimizes pressure loss and optimizes volume delivery rates
- Available in continuous long coils to reduce intermediate pipeline connection points
Structure
Hose Structure
Inner Tube: Smooth, black, oil and fuel resistant Nitrile (NBR) rubber
Reinforcement: High-tenacity synthetic textile cord plies with helical copper static wire
Outer Cover: Black/red/blue, smooth or wrapped finish weather and abrasion-resistant rubber blend
Applications
Applications
Mobile Fuel Tanker Truck Loading and Unloading Operations
Oil Depot and Petroleum Storage Facility Fluid Delivery Lines
Industrial Diesel Engine, Generator, and Boiler Fuel Feed Lines
Marine Vessel Fueling and Offshore Oil Transfer Pipelines
Agricultural and Construction Fleet Refueling Lines
General Industrial Hydrocarbon and Lubricant Fluid Transfer
Advantages
Why Choose This Product
Technical Data
Technical Specifications
| Inner Diameter Range | 1/2" to 2" (13 mm to 51 mm) |
|---|---|
| Inner Tube Material | Oil- & Fuel-Resistant Nitrile Rubber (NBR) |
| Outer Cover Material | Weather, UV & Abrasion Resistant Synthetic Rubber (NBR/PVC) |
| Reinforcement Layer | High-Tensile Synthetic Cord Plies + Built-In Copper Static Wire |
| Working Pressure (WP) | 20 Bar / 300 PSI (Customizable up to 20 Bar) |
| Burst Pressure (BP) | 60 Bar / 900 PSI (3:1 Safety Ratio) |
| Working Temperature | -40°C to +150°C |
| Electrical Conductivity | Integrated Copper Anti-Static Wire |
| Compatible Fluids | Gasoline, Diesel, Biodiesel, Kerosene, Lubrication Oils & Fuel Blends |
| Standard Lengths | 20 m, 40 m, 50 m continuous coils (Customizable) |
FAQ
Frequently Asked Questions
What types of fuels can be safely transferred using this hose?
How does the built-in static wire function?
What pressure ratings does this fuel delivery hose support?
Can this hose be used in sub-zero cold winter environments?
Are custom lengths and outer cover colors available?
Request a Quote
Get a Quotation for Fuel Hose (Nitrile Fuel & Oil Delivery Hose)
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
