Hose Fittings

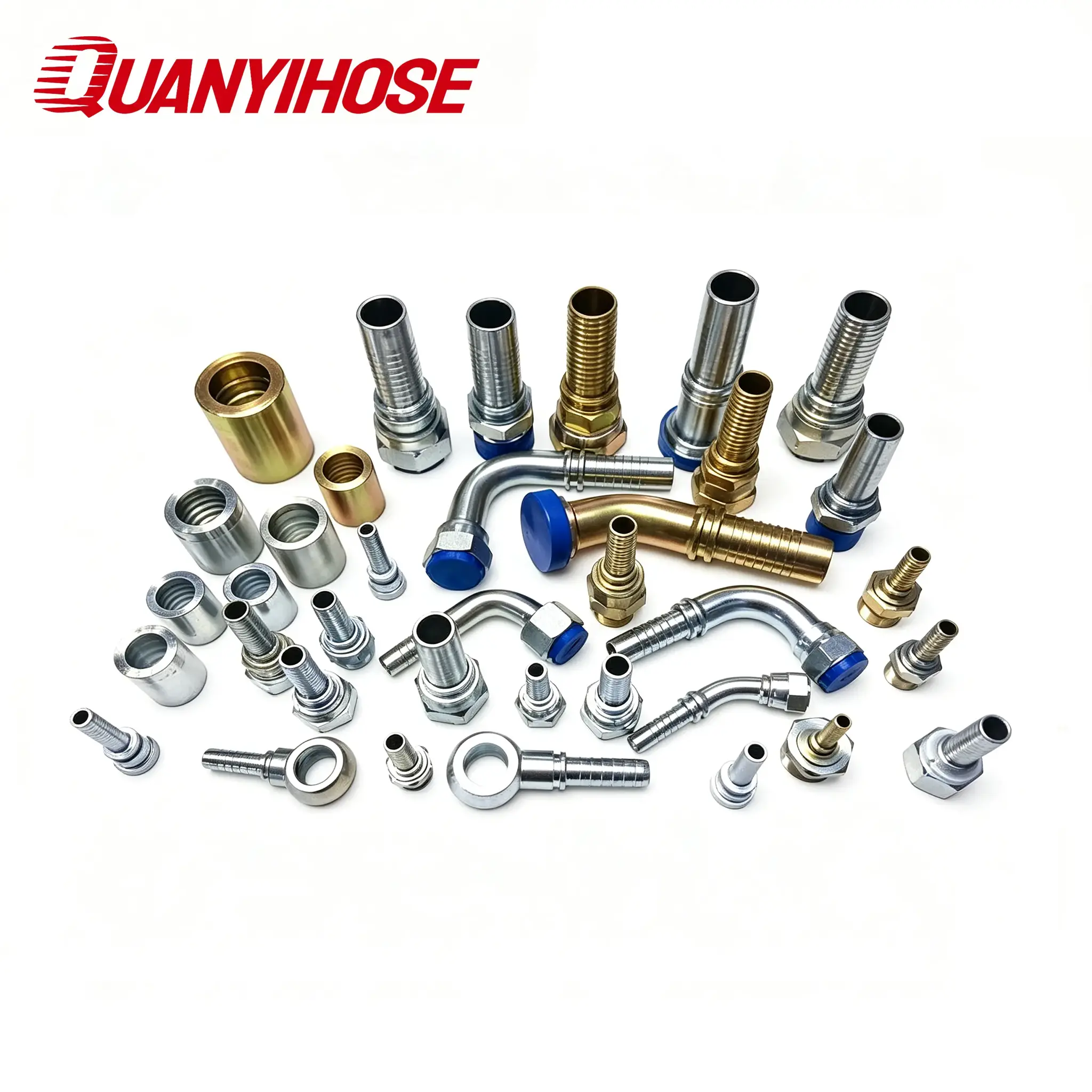

Hydraulic Hose Fittings

Engineered for leak-proof performance under high-pressure hydraulic operations, our precision hydraulic hose fittings are manufactured from high-grade carbon steel, stainless steel, or brass.

Quick Specifications

Material Grades	Carbon Steel (12L14, C45) / Stainless Steel (SS304, SS316) / Brass
Surface Finish Treatment	Zinc-Nickel (Zn-Ni) Plating / Cr6-Free Zinc Plating
Corrosion Resistance	≥ 720 Hours Neutral Salt Spray Test (No Red Rust per ASTM B117)
Thread Standards	JIC 37°, NPT, BSPP 60°, BSPT, DIN 24° Cone (DKL/DKOS), SAE Flange (Code 61/62), ORFS
Pressure Rating	Up to 420 Bar / 6000 PSI (Depending on Size & Connection Type)
Compatible Hose Types	1SN/2SN Wire Braid, 4SP/4SH Wire Spiral & Thermoplastic Hydraulic Hoses

Request A Quote WhatsApp

SAE / DIN / EN Standards

100% Proof Tested

OEM Branding Available

MOQ Flexible

Overview

Product Overview

The Hydraulic Hose Fittings by Quanyi Rubber are high-precision fluid connector components engineered for secure, zero-leakage integration with hydraulic hose assemblies. Designed to withstand continuous high pressure, heavy mechanical vibration, and dynamic pressure spikes, these couplings are essential for hydraulic power systems across earthmoving, mining, and manufacturing equipment.

Manufactured using CNC precision machining from premium carbon steel (12L14/C45) or stainless steel (SS304/SS316), each fitting features precise thread profiling and smooth sealing surfaces. Our comprehensive product line includes interlocking crimp fittings, bite-type tube fittings, flange ends, and quick-connect adapters, fully compatible with braided (1SN/2SN) and spiral steel wire (4SP/4SH) hydraulic hoses.

To ensure long-lasting protection against harsh outdoor weathering and aggressive hydraulic fluids, our steel fittings undergo an advanced Zinc-Nickel (Zn-Ni) electroplating surface treatment. This provides superior rust resistance, meeting and exceeding 720-hour red rust salt spray tests (ASTM B117). Adhering strictly to international standards including SAE, ISO, DIN, BSP, JIC, and JIS, Quanyi hydraulic fittings guarantee perfect interchangeability and seamless fluid system assembly.

Key Features

Precision CNC machined from high-strength carbon steel or SS304/SS316 stainless steel
Advanced Zinc-Nickel surface plating withstands 720+ hours of salt spray testing without red rust
Compatible with international thread profiles (JIC, NPT, BSP, DIN, ORFS, SAE Flange)
Engineered for high impulse pressure resistance up to 420 Bar (6000 PSI)
Precision crimp ferrules ensure 100% mechanical lock and blow-off protection on hose stems
Smooth internal fluid passages minimize turbulence, friction, and system heat generation
Complete interchangeability with major international hydraulic fitting brand specifications

Structure

Hose Structure

Stem Body: Machined barb stem designed for optimal rubber hose bite and seal integrity
Crimp Ferrule: High-ductility steel collar for outer hose cover compression locking
Thread Nut: Swivel or fixed thread nut complying with SAE, DIN, and ISO sealing seat angles

Applications

High-Pressure Hydraulic Power Units on Excavators, Loaders, and Tractors
Industrial Hydraulic Presses, Injection Molding, and Automation Systems
Mining Equipment, Underground Drilling Rigs, and Heavy Earthmovers
Oil & Gas Field Drilling Lines and Offshore Hydraulic Machinery
Agricultural Harvesters, Implements, and Mobile Hydraulic Circuits
Material Handling Equipment, Forklifts, and Marine Cranes

Advantages

Why Choose This Product

High salt-spray resistance extends fitting lifespan in corrosive marine and outdoor environments

Precision thread tolerances prevent thread galling, fluid weeping, and vibration loosening

Versatile range covers one-piece and two-piece fitting designs for simplified assembly crimping

Eliminates fluid leakage downtime, protecting sensitive hydraulic pumps and control valves

Custom OEM production available for specialized angles, drop lengths, and flange connections

Technical Data

Technical Specifications

Material Grades	Carbon Steel (12L14, C45) / Stainless Steel (SS304, SS316) / Brass
Surface Finish Treatment	Zinc-Nickel (Zn-Ni) Plating / Cr6-Free Zinc Plating
Corrosion Resistance	≥ 720 Hours Neutral Salt Spray Test (No Red Rust per ASTM B117)
Thread Standards	JIC 37°, NPT, BSPP 60°, BSPT, DIN 24° Cone (DKL/DKOS), SAE Flange (Code 61/62), ORFS
Pressure Rating	Up to 420 Bar / 6000 PSI (Depending on Size & Connection Type)
Compatible Hose Types	1SN/2SN Wire Braid, 4SP/4SH Wire Spiral & Thermoplastic Hydraulic Hoses
Manufacturing Standard	SAE J514, SAE J1453, DIN 2353, ISO 8434, ISO 12151

FAQ

Frequently Asked Questions

What thread types are available for your hydraulic hose fittings?

We offer a complete range of global standard threads, including JIC 37° flare, NPT male, BSPP/BSPT, DIN 24° cone (DKL/DKOS), ORFS flat face, and SAE Code 61/62 flanges.

What surface treatment is used to prevent rust on your fittings?

Our carbon steel fittings feature an advanced Zinc-Nickel (Zn-Ni) plating that exceeds 720 hours of salt spray testing per ASTM B117 standards.

Are one-piece pre-crimped fittings or two-piece fitting/ferrule combinations better?

Two-piece fittings (stem + ferrule) offer greater flexibility for custom hose assembly, while one-piece crimp fittings simplify fast production. We supply both types.

What working pressure ratings do these hydraulic couplings support?

Depending on thread type and size, our fittings support operating pressures up to 420 Bar (6000 PSI) with a 4:1 pressure safety factor.

Can you manufacture custom hydraulic adapters or non-standard fittings from drawings?

Yes, we offer full OEM/ODM manufacturing based on technical drawings, samples, or specific equipment requirements.

Request a Quote

Get a Quotation for Hydraulic Hose Fittings

Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
