SAE 100R6 | Hydraulic Hose

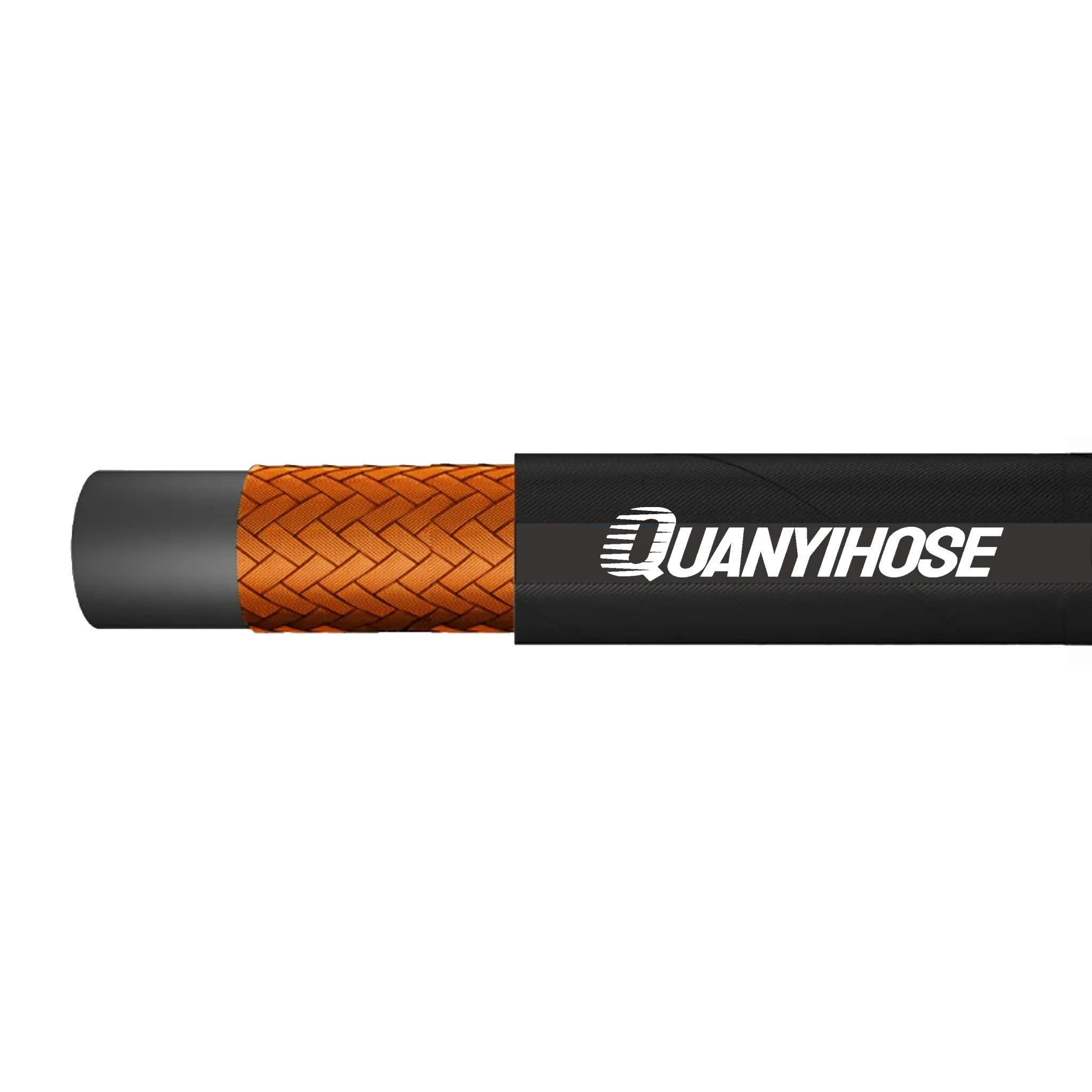

The SAE 100 R6 textile-reinforced hydraulic hose consists of three parts: an inner tube, a reinforcing layer, and an outer layer. The inner tube is made of high-quality black synthetic rubber, which is oil-resistant, wear-resistant, and corrosion-resistant.
Quick Specifications
| Internal Hose | Oil resistant synthetic rubber. |
|---|---|
| Reinforcement | One layer textile braid. |
| Cover | Oil and weather resistant synthetic rubber, Wrapped/Smooth cover. |
| Application | Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more. |
| Temperature | -40°C to +100°C |
| Working Pressure | 17 – 35 Bar / 250 – 508 Psi. |
Overview
Product Overview
SAE 100 R6 textile reinforced hydraulic hose is suitable for delivering petroleum or water-based hydraulic fluids and it is mainly used in low pressure conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality black synthetic rubber, which is resistant to oil, abrasion and corrosion. Therefore, the hose is widely used in the delivery of petroleum or water-based hydraulic fluids. The reinforcement is made from one layer of braided textile, making it widely used in low pressure applications. The cover is made from high quality synthetic rubber, which is resistant to abrasion, corrosion, weather, ozone, cut, aging and sunlight. The hose has longer service life as a result.
Hydraulic Hose SAE100 R6 RECOMMENDED FOR:
Hydraulic Rubber Hose SAE100 R6. Low-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100 R6 AT.
INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: single layer of fibre braided
COVER: oil and weather resistant synthetic rubber
Hydraulic Hose SAE100 R6 APPLICATION: petroleum base and water base hydraulic fluids
Hydraulic Hose SAE100 R6 TEMPERATURE RANGE: -40℃ (-104 ℉) to +100℃(+212 ℉)
| Size | Inside (mm) | Outside (mm) | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | |||||||
| DN | inch | mm | Dash | Min | Max | Min | Max | Bar | Psi | Bar | Psi | mm | kg/m | M |
| 5 | 3/16″ | 4.8 | -3 | 4.4 | 5.2 | 10.3 | 11.9 | 35 | 508 | 140 | 2030 | 50 | 0.10 | 50 |
| 6 | 1/4″ | 6.4 | -4 | 5.9 | 6.9 | 11.9 | 13.5 | 28 | 400 | 112 | 1620 | 64 | 0.11 | 50 |
| 8 | 5/16″ | 7.9 | -5 | 7.4 | 8.4 | 13.5 | 15.1 | 28 | 400 | 112 | 1620 | 76 | 0.13 | 50 |
| 10 | 3/8″ | 9.5 | -6 | 9.0 | 10.0 | 15.1 | 16.7 | 28 | 400 | 112 | 1620 | 76 | 0.16 | 50 |
| 13 | 1/2″ | 12.7 | -8 | 12.1 | 13.3 | 17.7 | 19.7 | 28 | 400 | 112 | 1620 | 102 | 0.22 | 50 |
| 16 | 5/8″ | 15.9 | -10 | 15.3 | 16.5 | 22.2 | 23.8 | 24 | 350 | 96 | 1400 | 107 | 0.27 | 50 |
| 19 | 3/4” | 19.0 | -12 | 18.2 | 19.8 | 25.4 | 27.8 | 21 | 300 | 84 | 1200 | 152 | 0.37 | 50 |
| 25 | 1″ | 25.4 | -16 | 24.6 | 26.2 | 32.2 | 34.6 | 17 | 250 | 70 | 1000 | 203 | 0.48 | 50 |
Key Features
Key Features
- High flexibility with excellent bending performance
- Textile braided reinforcement for reliable pressure resistance
- Oil resistant synthetic rubber inner tube
- Weather and abrasion resistant outer cover
- Suitable for low pressure hydraulic applications
- Lightweight design for easy installation and maintenance
- Excellent resistance to aging and environmental conditions
- Compatible with petroleum-based hydraulic fluids
- Available in multiple sizes and customized lengths
- Meets SAE 100 R6 international hydraulic hose standards
Structure
Hose Structure
Inner Tube:
Oil resistant synthetic rubber, designed for compatibility with hydraulic oils and lubricants.
Reinforcement Layer:
High strength textile braided reinforcement provides flexibility and stable pressure performance.
Outer Cover:
Weather, abrasion and ozone resistant synthetic rubber cover for long service life.
Temperature Range:
-40°C to +100°C (-40°F to +212°F)
Standard:
SAE 100 R6 / DIN EN 854 Type R6
Applications
Applications
Agricultural machinery hydraulic systems
Construction equipment and hydraulic return lines
Automotive hydraulic applications
Industrial machinery and equipment
Air compressor systems
Oil and fuel delivery applications
Lubrication and grease systems
Low pressure hydraulic circuits
Pneumatic systems and air tools
General industrial fluid transfer applications
Advantages
Why Choose This Product
Technical Data
Technical Specifications
| Internal Hose | Oil resistant synthetic rubber. |
|---|---|
| Reinforcement | One layer textile braid. |
| Cover | Oil and weather resistant synthetic rubber, Wrapped/Smooth cover. |
| Application | Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more. |
| Temperature | -40°C to +100°C |
| Working Pressure | 17 – 35 Bar / 250 – 508 Psi. |
FAQ
Frequently Asked Questions
What is SAE 100 R6 hydraulic hose?
What is the working pressure of SAE 100 R6 hose?
What is the difference between SAE 100 R6 and SAE 100 R1 hose?
Can SAE 100 R6 hose be used for hydraulic oil?
What sizes are available for SAE 100 R6 hydraulic hose?
What temperature range can SAE 100 R6 hose handle?
Is SAE 100 R6 hose suitable for agricultural equipment?
Can you provide OEM service for SAE 100 R6 hose?
How long is the service life of SAE 100 R6 hydraulic hose?
Why choose Quanyi SAE 100 R6 hydraulic hose?
