Hydraulic Hose Protection Sleeve

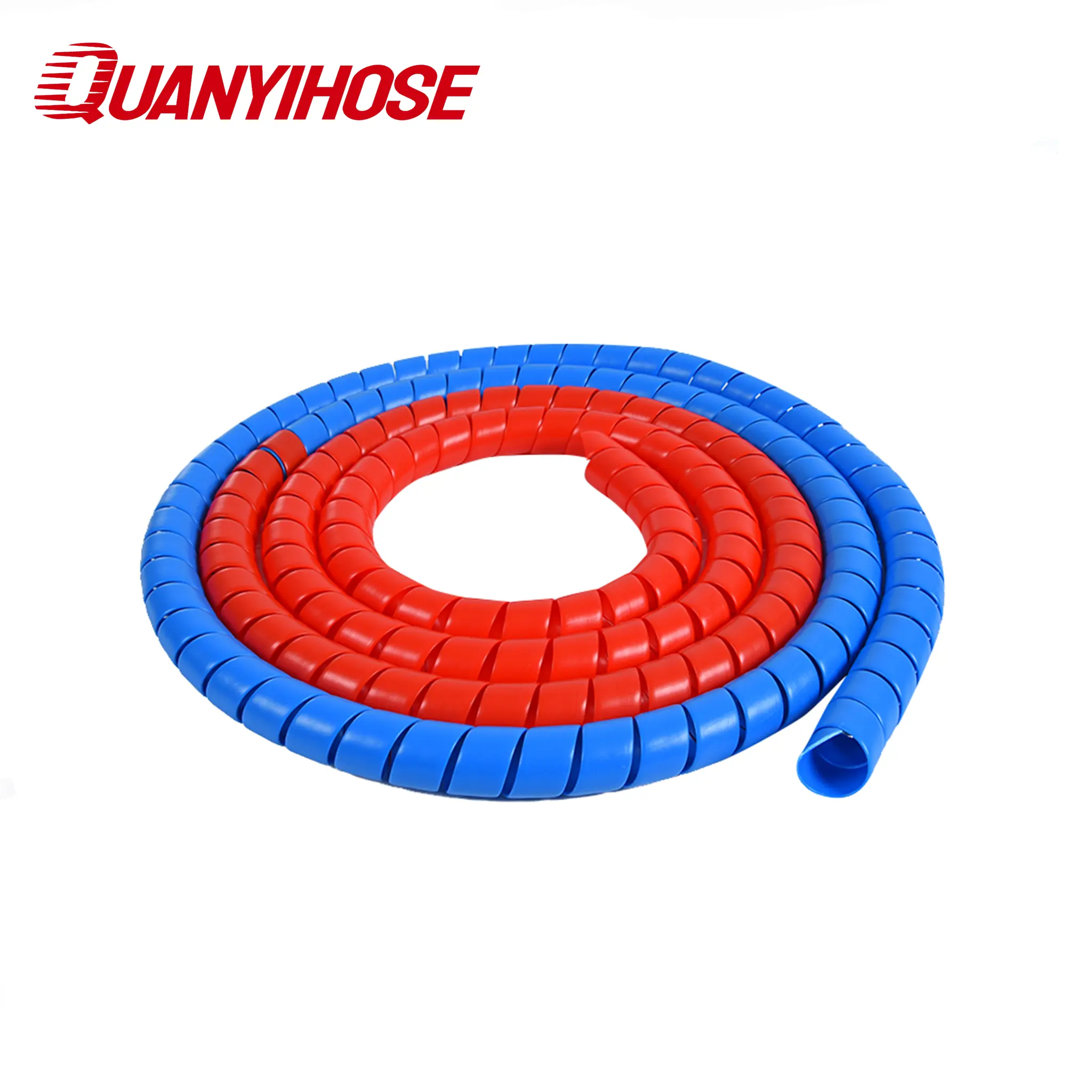

Spiral Hose Guard
Engineered to protect high-pressure hydraulic and industrial hoses from severe mechanical abrasion, crushing, and harsh weather exposure, our spiral hose guard is extruded from high-density polyethylene (HDPE) or polypropylene (PP).
Quick Specifications
| Inner Diameter Range | 8 mm to 200 mm (Customizable) |
|---|---|
| Material Grade | High-Density Polyethylene (HDPE) / Polypropylene (PP) |
| Surface Profile | Smooth Flat Surface (Flat Profile) with Anti-Scratch Rounded Edges |
| Working Temperature | -40°C to +120°C (-40°F to +248°F) |
| Tensile Strength | High Tensile & Impact Resistance (Non-Brittle at Low Temps) |
| Color Options | Black, Yellow, Red, Blue, Green, or Custom Options |
SAE / DIN / EN Standards
100% Proof Tested
OEM Branding Available
MOQ Flexible
Overview
Product Overview
The Spiral Hose Guard by Quanyi Rubber is a heavy-duty protective sleeve engineered to safeguard hydraulic hoses, pneumatic lines, and cable bundles operating under harsh working environments. Manufactured from premium modified high-density polyethylene (HDPE) or polypropylene (PP), this spiral wrap features superior impact strength, high tensile toughness, and excellent abrasion resistance.
Designed to eliminate costly downtime and frequent hose replacements, our spiral protective sleeve forms a durable shield around hydraulic lines, preventing severe rubbing against equipment frames, gravel, or sharp metal edges. Its specialized spiral construction allows for easy on-site installation over existing hose assemblies without requiring system shutdown or hose disconnection.
With an operational temperature range from -40°C to +120°C, the guard retains its shape, flexibility, and anti-crushing performance under extreme thermal conditions. Additionally, it offers comprehensive protection against direct UV radiation, ozone aging, hydraulic oils, and chemical splatter. Available in a wide variety of inner diameters, flat/curved profile designs, and vivid color options (Yellow, Black, Red, Blue, Green), Quanyi spiral hose guards provide professional cable management and maximum equipment safety for heavy-duty machinery.
| Size | ID (mm) | OD (mm) | Wall Thickness (mm) | Width (mm) |
| 8 | 8 | 10 | 1 | 12 |
| 10 | 10 | 12 | 1 | 12 |
| 12 | 12 | 14 | 1 | 12 |
| 14 | 14 | 16 | 1 | 13 |
| 16 | 16 | 18.8 | 1.4 | 14.5 |
| 18 | 18 | 21.2 | 1.6 | 15.5 |
| 19 | 19 | 22.2 | 1.6 | 15.5 |
| 21 | 21 | 24.6 | 1.8 | 18.5 |
| 22 | 22 | 25.6 | 1.8 | 18.5 |
| 25 | 25 | 28.6 | 1.8 | 21.5 |
| 26 | 26 | 29.6 | 1.8 | 21.5 |
| 28 | 28 | 31.8 | 1.9 | 22.5 |
| 30 | 30 | 34 | 2 | 23 |
| 32 | 32 | 36 | 2 | 23 |
| 35 | 35 | 39 | 2 | 24 |
| 38 | 38 | 42 | 2 | 24 |
| 40 | 40 | 45.6 | 2.8 | 25 |
| 42 | 42 | 48 | 3 | 26 |
| 45 | 45 | 51 | 3 | 27 |
| 48 | 48 | 54 | 3 | 27 |
| 50 | 50 | 56 | 3 | 27 |
| 51 | 51 | 57 | 3 | 27 |
| 60 | 60 | 66 | 3 | 26.5 |
| 63 | 63 | 69 | 3 | 27 |
| 68 | 68 | 74 | 3 | 30 |
| 74 | 74 | 84.4 | 5.2 | 47.5 |
| 80 | 80 | 89 | 4.5 | 40.5 |
| 88 | 88 | 98 | 5 | 43 |
| 100 | 100 | 110 | 5 | 45 |
Key Features
Key Features
- Extruded from high-density HDPE/PP to deliver extreme abrasion and impact resistance
- Spiral wrapped structure enables rapid installation without disconnecting hydraulic lines
- Smooth interior surface prevents friction wear against the hose's outer cover
- Wide operating temperature tolerance from -40°C to +120°C without cracking or softening
- Bundles multiple hydraulic hoses or cables into a clean, safe, and organized assembly
- Superior resistance to UV exposure, ozone degradation, oils, and chemical splatter
- Vivid safety color options (Red, Blue, Yellow, Black) enhance visual identification and site safety
Structure
Hose Structure
Core Body: Extruded helical spiral polypropylene / high-density polyethylene strip
Edge Finishing: Smooth rounded edges designed to prevent hose sleeve cutting
Inner Bore: Non-abrasive smooth inner surface ensuring effortless longitudinal sliding
Applications
Applications
Hydraulic Hose Abrasion Protection on Excavators, Loaders, and Diggers
Agricultural Tractor, Harvester, and Implement Fluid Line Bundling
Mining Machinery, Tunneling Equipment, and Heavy Earthmovers
Forestry Equipment, Log Loaders, and Wood Processing Lines
Industrial Hose Bundling and Electrical Cable Harness Management
Marine Cranes, Offshore Rig Hydraulics, and Port Equipment
Advantages
Why Choose This Product
Drastically reduces hydraulic hose replacement costs by extending outer cover service life
Minimizes fluid leak risks by shielding hoses from sharp metal edges and external pinches
Retrofit capability allows fast field maintenance and immediate line protection upgrades
Brightly colored wraps improve line identification and operator safety around active moving arms
High elastic memory ensures tight wrapping around single or multi-line hose bundles
Technical Data
Technical Specifications
| Inner Diameter Range | 8 mm to 200 mm (Customizable) |
|---|---|
| Material Grade | High-Density Polyethylene (HDPE) / Polypropylene (PP) |
| Surface Profile | Smooth Flat Surface (Flat Profile) with Anti-Scratch Rounded Edges |
| Working Temperature | -40°C to +120°C (-40°F to +248°F) |
| Tensile Strength | High Tensile & Impact Resistance (Non-Brittle at Low Temps) |
| Color Options | Black, Yellow, Red, Blue, Green, or Custom Options |
| Chemical & UV Resistance | Resistant to Hydraulic Oil, Acid/Alkali Splatter, UV & Ozone |
| Installation Method | Spiral Wrap (Retrofit without Line Disconnection) |
| Standard Coil Lengths | 2 m, 10 m, 20 m, 50 m per coil (Customizable) |
FAQ
Frequently Asked Questions
How do I choose the correct size of spiral hose guard for my hose?
Select an inner diameter that matches or is slightly smaller than the outer diameter (O.D.) of your single hose or hose bundle to ensure a tight, secure fit.
Can this spiral sleeve be installed on hoses that are already connected?
Yes, the open spiral design allows effortless wrapping around pre-installed hose lines without disconnecting fittings or draining fluid.
What material is better for outdoor heavy machinery: HDPE or PP?
Both HDPE and PP offer excellent durability; HDPE provides enhanced flexibility and impact resistance at cryogenic temperatures (-40°C), while PP offers high stiffness.
Does the spiral wrap resist hydraulic oil and UV exposure?
Yes, our formulation includes UV stabilizers and is fully resistant to hydraulic fluids, lubricants, fuel splatters, and weather aging.
Can custom colors and cut-to-length sizes be manufactured?
Yes, we supply standard coils of 10m, 20m, and 50m in various colors (Black, Yellow, Red, Blue, etc.) and can provide custom cut lengths.
