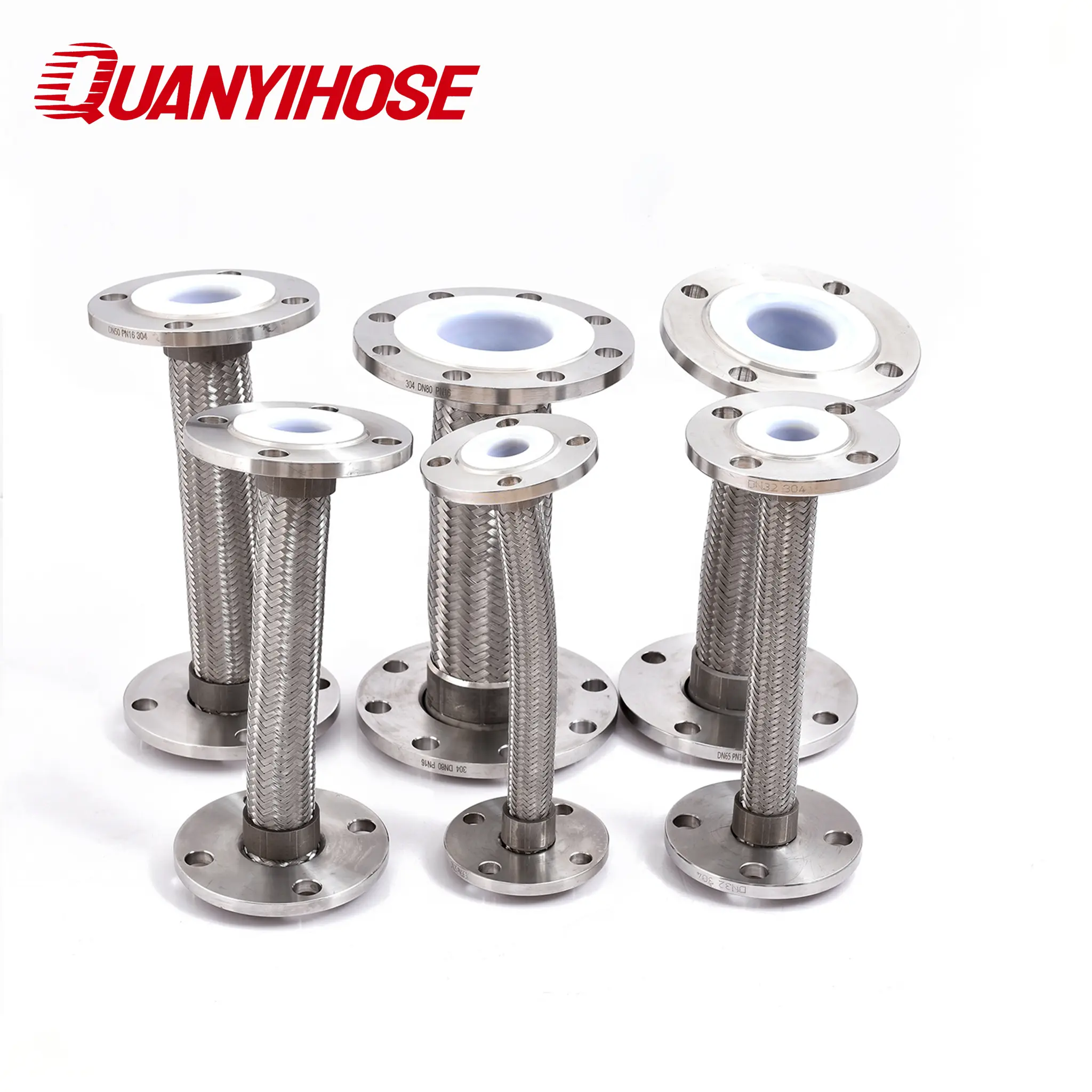

Stainless Steel Flexible Metal Hose
Engineered for extreme temperature and high-pressure fluid conveyance, our stainless steel flexible metal hose features a annular corrugated inner core reinforced with single or double stainless steel wire braided layers (304 / 316 / 316L / 321).
Quick Specifications
| Inner Core Material | Austenitic Stainless Steel 304 / 316 / 316L / 321 |
|---|---|
| Inner Core Profile | Annular Corrugated Ripple |
| Outer Braided Layer Material | Stainless Steel 304 / 316L |
| Number of Braided Layers | 1 or 2 Layers (configured by working pressure) |
| Outer Diameter Range | 10 mm to 300 mm |
| Wall Thickness Range | 0.18 mm to 0.6 mm |
Overview
Product Overview
The Stainless Steel Flexible Metal Hose by Quanyi Rubber is an advanced, high-reliability flexible connection component engineered for demanding industrial pipeline systems. Designed to operate where conventional rubber or plastic hoses fail due to severe temperature, pressure, or chemical attack, this metal hose offers superior flexibility, fatigue resistance, and extended service life.
Constructed with a premium austenitic stainless steel inner core (SS304, SS316, SS316L, or SS321) featuring an annular circular ripple profile, the hose guarantees maximum structural strength, smooth flow, and resistance to vacuum collapse. For high-pressure integrity, the exterior is reinforced with one or two layers of high-density SS304 or SS316L wire braid, dynamically engineered based on system pressure requirements.
Capable of withstanding extreme temperature environments ranging from -200°C to +600°C and outer diameters from 10mm to 300mm, our flexible metal hoses absorb mechanical shock, thermal expansion, and pipeline vibration. Welded with precision fittings according to global standards (ASTM, AISI, DIN, EN, GB, JIS), Quanyi metal hoses ensure zero diffusion and seamless fluid transfer in high-consequence industrial applications.
|
Nominal Dia(mm) (in)
|
Inner Dia (mm)
|
Outer Dia.(mm)
|
Min Bend Radius(mm)
|
Pressure Applicable(MPa)
|
Weight(kg/m)
|
||||
|
Main Body
|
Single Braid
|
Static State
|
Dynamic State
|
Single Braid
|
Double Braid
|
Main Body
|
Single Braid
|
||
|
1/2"
|
14
|
20
|
22
|
65
|
120
|
7.5
|
12.5
|
0.21
|
0.40
|
|
5/8"
|
16
|
23
|
25
|
80
|
150
|
6.4
|
10.0
|
0.26
|
0.50
|
|
3/4"
|
20
|
28
|
30
|
100
|
180
|
5.0
|
8.0
|
0.35
|
0.60
|
|
1"
|
25
|
35
|
37
|
120
|
280
|
4.0
|
7.5
|
0.47
|
0.85
|
|
1-1/4"
|
32
|
43
|
45
|
140
|
340
|
3.5
|
6.4
|
0.51
|
0.96
|
|
1-1/2"
|
40
|
51
|
53
|
180
|
450
|
3.0
|
5.6
|
0.70
|
1.18
|
|
2"
|
50
|
62
|
64
|
220
|
550
|
2.5
|
4.0
|
0.85
|
1.75
|
|
2-1/2"
|
65
|
79
|
82
|
280
|
650
|
2.0
|
4.0
|
1.41
|
2.70
|
|
3"
|
80
|
97
|
100
|
350
|
800
|
2.0
|
3.2
|
1.62
|
3.12
|
|
4"
|
100
|
122
|
125
|
400
|
1000
|
1.6
|
2.5
|
2.00
|
3.70
|
|
5"
|
125
|
151
|
155
|
500
|
1200
|
1.5
|
2.5
|
2.80
|
5.0
|
|
6"
|
150
|
180
|
184
|
600
|
1500
|
1.5
|
2.5
|
3.80
|
6.6
|
|
7"
|
175
|
210
|
215
|
700
|
1750
|
1.2
|
2.0
|
5.80
|
9.7
|
|
8"
|
200
|
240
|
245
|
800
|
2000
|
1.2
|
2.0
|
6.70
|
12
|
|
10"
|
250
|
298
|
303
|
1000
|
2200
|
1.0
|
1.6
|
10.60
|
18.1
|
|
12"
|
300
|
360
|
365
|
1200
|
2500
|
1.0
|
1.6
|
17.10
|
31.4
|
|
14"
|
350
|
410
|
415
|
1400
|
3000
|
0.8
|
1.2
|
20.00
|
36.3
|
|
16"
|
400
|
460
|
465
|
1600
|
3500
|
0.6
|
1.0
|
22.80
|
41.1
|
|
18"
|
450
|
520
|
525
|
1800
|
4000
|
||||
|
20"
|
500
|
570
|
575
|
2000
|
4500
|
||||
|
24"
|
600
|
670
|
675
|
2400
|
5500
|
||||
Key Features
Key Features
- Annular corrugated core design offers outstanding flexibility and high fatigue resistance
- Extreme working temperature resistance handling from cryogenic -200°C up to +600°C
- High-density 304/316L braided stainless steel sleeve ensures high-pressure containment
- Full austenitic stainless steel construction delivers exceptional chemical corrosion resistance
- Absorbs thermal growth, piping vibration, and severe angular/lateral misalignments
- Zero-permeation and zero-diffusion tube wall protecting personnel and the environment
- Available with multiple welded end fittings complying with ASTM, DIN, JIS, and EN standards
Structure
Hose Structure
Inner Tube: Hydroformed annular corrugated stainless steel 304/316/316L/321 hose
Reinforcement Braid: High-tensile stainless steel 304/316L woven wire mesh (1 or 2 plies)
End Connection: Precision TIG-welded flanges, threaded nipples, or custom unions
Applications
Applications
High-Temperature Steam and Thermal Oil Piping Connections
Chemical and Petrochemical Processing Plant Lines
Pump, Compressor, and Valve Vibration Absorption Lines
Cryogenic Liquid and Gas Conveying Systems
Steel Mills, Power Generation, and Boiler Feed Pipelines
Exhaust, Automotive, and Marine Industrial Systems
Advantages
Why Choose This Product
Technical Data
Technical Specifications
| Inner Core Material | Austenitic Stainless Steel 304 / 316 / 316L / 321 |
|---|---|
| Inner Core Profile | Annular Corrugated Ripple |
| Outer Braided Layer Material | Stainless Steel 304 / 316L |
| Number of Braided Layers | 1 or 2 Layers (configured by working pressure) |
| Outer Diameter Range | 10 mm to 300 mm |
| Wall Thickness Range | 0.18 mm to 0.6 mm |
| Connection Type | Welded Fittings (Flange, Thread, Union, Quick Coupling) |
| Temperature Resistance | -200°C to +600°C (-328°F to +1112°F) |
| International Standards | ASTM, AISI, DIN, EN, GB, JIS & Q/YMC0164 |
| Sealing Integrity | 100% Leak-Proof & Zero-Diffusion |
FAQ
Frequently Asked Questions
What stainless steel grades are used for your flexible metal hoses?
What is the operating temperature range for this metal hose?
When should I choose a double-braided metal hose over a single-braided hose?
What end fittings can be welded onto these metal hoses?
Can this hose absorb pump vibration and piping misalignment?
