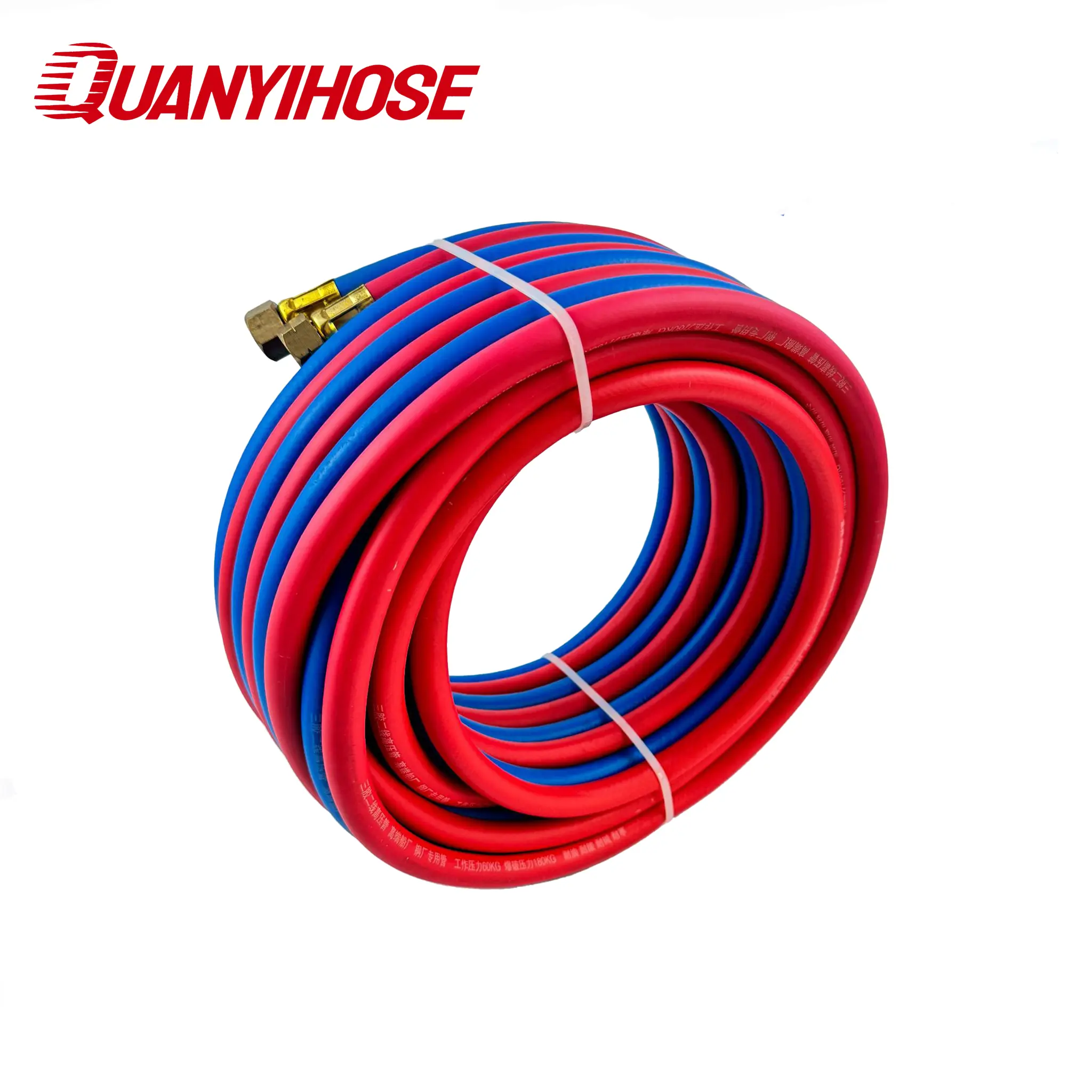

Twin Welding Hose for Oxygen and Acetylene
Engineered for industrial gas welding, cutting, and allied thermal processes, our twin welding hose features a bonded dual-line design for oxygen (blue) and fuel gases (red).
Quick Specifications
| Inner Diameter Range | 5/32" to 1" (4 mm to 25 mm) |
|---|---|
| Outer Diameter Range | 9 mm to 34 mm |
| Inner & Outer Layer | High-Quality Rubber-Plastic Composite (PVC/NBR Blend) |
| Reinforcement Layer | Double High-Tensile Polyester Yarn Braiding |
| Working Pressure (W.P) | 2.0 MPa to 3.0 MPa (20 Bar to 30 Bar / 290 to 435 PSI) at 23°C |
| Burst Pressure (B.P) | 6.0 MPa to 12.0 MPa (60 Bar to 120 Bar / 4:1 Safety Factor) |
Overview
Product Overview
The Twin Welding Hose for Oxygen and Acetylene by Quanyi Rubber is a professional-grade dual-line composite hose engineered specifically for high-efficiency gas welding, flame cutting, and metal heating operations. Designed with a twin-bonded structure, it eliminates line tangling while allowing smooth mobility and easy color-coded gas identification (Red for Acetylene/Fuel Gas, Blue for Oxygen).
Manufactured from a high-purity rubber-plastic composite material, this hose incorporates specialized cold-resistant and flame-retardant additives. It effectively resists accidental sparks, molten slag contact, and high-temperature burns while maintaining flexibility without hardening in winter or softening in summer. The structural core is reinforced with double polyester yarn braiding, providing superior tension strength to handle dynamic pressure loads up to 30 Bar (3.0 MPa) and burst pressures up to 120 Bar (12.0 MPa).
Compared with traditional rubber hoses, our rubber-plastic composite formulation is 30% lighter, significantly reducing operator fatigue during long shifts while delivering superior weather, UV, and ozone aging resistance (maintaining a crack-free exterior for over 5 years outdoors). Fully compliant with national standards for gas welding equipment, it is the ideal flexible line for fabrication shops, construction yards, and industrial machinery maintenance.
| Size | Hose I.D. | Hose O.D. | Working Pressure | Burst Pressure | Weight | Length | ||
| inch | mm | mm | Bar | Psi | Bar | Psi | kg/m | M/roll |
| 3/16” | 5 | 12 | 20 | 300 | 60 | 900 | 0.27 | 50/100 |
| 1/4″ | 6 | 13 | 20 | 300 | 60 | 900 | 0.35 | 50/100 |
| 5/16″ | 8 | 15 | 20 | 300 | 60 | 900 | 0.47 | 50/100 |
| 23/64” | 9 | 16 | 20 | 300 | 60 | 900 | 0.52 | 50/100 |
| 3/8″ | 10 | 17.5 | 20 | 300 | 60 | 900 | 0.60 | 50/100 |
| 1/2” | 13 | 21 | 20 | 300 | 60 | 900 | 0.76 | 50/100 |
Key Features
Key Features
- Twin-welded hose structure prevents line tangling and speeds up job site deployment
- Color-coded dual lines (Red for fuel gas, Blue for oxygen) ensure clear identification and job safety
- Formulated with flame-retardant agents to protect against welding sparks and hot slag contact
- Cold-resistant rubber-plastic blend remains supple in sub-zero winter and soft-stable in summer
- Double-ply braided polyester reinforcement ensures 30 Bar working pressure and 120 Bar burst resistance
- 30% lighter weight compared to conventional heavy rubber hoses, reducing operator fatigue
- High anti-aging compound prevents surface cracking under outdoor sunlight and ozone exposure
Structure
Hose Structure
Inner Tube: Smooth, gas-impermeable rubber-plastic composite lining
Reinforcement: High-tenacity double polyester yarn braided mesh
Outer Layer: Flame-retardant, abrasion-resistant red/blue rubber-plastic cover bonded together
Applications
Applications
Oxy-Acetylene and Oxy-Fuel Gas Welding and Thermal Flame Cutting
Steel Structure Fabrication and Heavy Machinery Manufacturing
Shipbuilding, Ship Repair, and Offshore Construction Yards
Civil Construction and Industrial Demolition Operations
Automotive Body Repair and Metal Maintenance Workshops
Industrial Lacquer and Coating Spraying Systems
Advantages
Why Choose This Product
Technical Data
Technical Specifications
| Inner Diameter Range | 5/32" to 1" (4 mm to 25 mm) |
|---|---|
| Outer Diameter Range | 9 mm to 34 mm |
| Inner & Outer Layer | High-Quality Rubber-Plastic Composite (PVC/NBR Blend) |
| Reinforcement Layer | Double High-Tensile Polyester Yarn Braiding |
| Working Pressure (W.P) | 2.0 MPa to 3.0 MPa (20 Bar to 30 Bar / 290 to 435 PSI) at 23°C |
| Burst Pressure (B.P) | 6.0 MPa to 12.0 MPa (60 Bar to 120 Bar / 4:1 Safety Factor) |
| Working Temperature | -10°C to +80°C (14°F to 176°F) |
| Flame & Cold Resistance | Flame-Retardant & Anti-Freezing Additive Formulated |
| Color Code | Red (Acetylene / Fuel Gas) + Blue (Oxygen) Joined Twin Lines |
| Standard Coil Lengths | 28 m, 50 m, 100 m per roll (Customizable) |
FAQ
Frequently Asked Questions
What gases can be safely conveyed using this twin welding hose?
How does the flame-retardant feature benefit job site safety?
What is the advantage of a rubber-plastic composite hose over pure rubber?
What pressure rating does this twin gas hose support?
Can the hose lengths and fitting connections be customized?
Request a Quote
Get a Quotation for Twin Welding Hose for Oxygen and Acetylene
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
