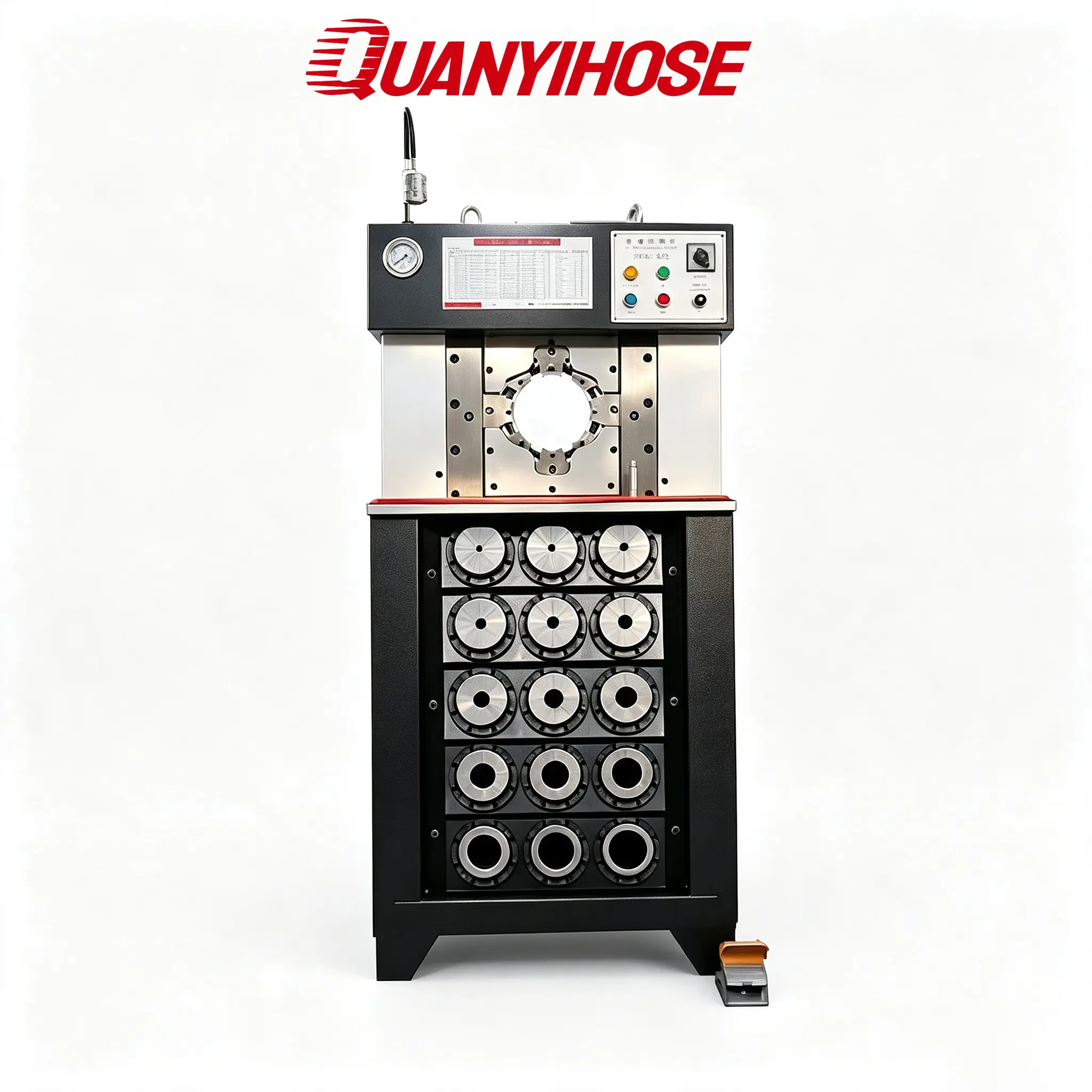

Hydraulic Hose Crimping Machine QY-120B
Ultra-thin joint hydraulic hose crimping machine for 1/4" to 3" hoses.
Quick Specifications
| Crimping Range | 6-76mm (1/4"~3") |
|---|---|
| Quantity of Dies | 15 sets |
| Accuracy | ±0.01 mm |
| Output Volume of Pump | 10L / 16L |
| System Pressure | 31.5 MPa |
| Motor Power | 5.5 kW / 7.5 kW |
SAE / DIN / EN Standards
100% Proof Tested
OEM Branding Available
MOQ Flexible
Overview
Product Overview
The QY-120B hydraulic hose crimping machine is designed for crimping hydraulic hose fittings with ultra-thin joints. With a crimping range of 6-76mm (1/4" to 3"), it handles a wide variety of hose sizes. The 15-die set and ±0.01mm accuracy make it suitable for both small workshops and large-scale production lines.
Key Features
Key Features
- Crimping range 6-76mm (1/4" to 3") covering most hydraulic hose sizes
- 15-die set enables crimping of multiple hose sizes on one machine
- ±0.01mm crimping accuracy for repeatable assembly quality
- 1500 t crimping force handles spiral and braided hose fittings
- Multi-voltage motor (110V/220V/380V/415V) for global deployment
- 300 pcs/h work efficiency for production-line throughput
Applications
Applications
Suitable for:
- Hydraulic hose assembly production
- Hose repair workshops
- Mining & construction fleet maintenance
- OEM hose manufacturing
- Multi-size hose crimping\
| crimping range | 6-76mm | work efficiency | 300 pes/h |
| quantity of dies | 15 sets | maximum open diameter | 165MM (Die not set) |
| accuracy | 0.01 mm | the max open tolerance | +53mm |
| output volume of pump | 10L | machine dimension | 755*1045*1630mm |
| system pressure | 31.5mpa | package dimension | 840*1090*1760mm |
| motor power | 5. 5KW | net weight | 1250Kg |
| voltage | 380V | gross weight | 1300Kg |
| crimping force | 2800KN |
Advantages
Why Choose This Product
Suitable for both small workshops and large-scale production lines
Dies and tooling included for immediate deployment
Low maintenance design with proven field reliability
English operation manual and remote technical support available
OEM branding and custom voltage configurations available
Worldwide shipping with export-grade packaging
Technical Data
Technical Specifications
| Crimping Range | 6-76mm (1/4"~3") |
|---|---|
| Quantity of Dies | 15 sets |
| Accuracy | ±0.01 mm |
| Output Volume of Pump | 10L / 16L |
| System Pressure | 31.5 MPa |
| Motor Power | 5.5 kW / 7.5 kW |
| Spec | Voltage: 110V / 220V / 380V / 415V 50/60Hz |
| Crimping Force | 1500 t |
| Work Efficiency | 300 pcs/h |
| Max Open Diameter | 165 mm |
| Machine Dimension | 1000×800×1630 mm |
| Net Weight | 1250 kg |
FAQ
Frequently Asked Questions
What hose sizes can the QY-120B crimp?
The machine crimps hose assemblies from 1/4" to 3" inside diameter (6-76mm crimping diameter), covering the vast majority of braided (1SN, 2SN) and spiral (4SP, 4SH, R12, R13) hydraulic hoses.
What is included with the machine?
Standard supply includes the crimping machine, 15 die sets covering common hose sizes, hydraulic pump, motor, and English operation manual. Custom die sets for non-standard fittings are available on request.
What voltage options are available?
The machine is configurable for 110V, 220V, 380V or 415V, 50/60Hz single or three-phase. Specify your local voltage and phase when ordering. Plug type can be configured to your region.
Do you provide training and technical support?
Yes. The English operation manual covers setup, die selection, crimp diameter adjustment and maintenance. Remote video support is available for installation and troubleshooting. On-site commissioning can be arranged for large orders.
Can the machine crimp both braided and spiral hose?
Yes. With appropriate die selection the CBK-120B crimps 1SN, 2SN, 4SP, 4SH, R12, R13 and similar hydraulic hose constructions. Always verify die compatibility with your specific fitting and hose combination before production.
Request a Quote
Get a Quotation for Hydraulic Hose Crimping Machine QY-120B
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
