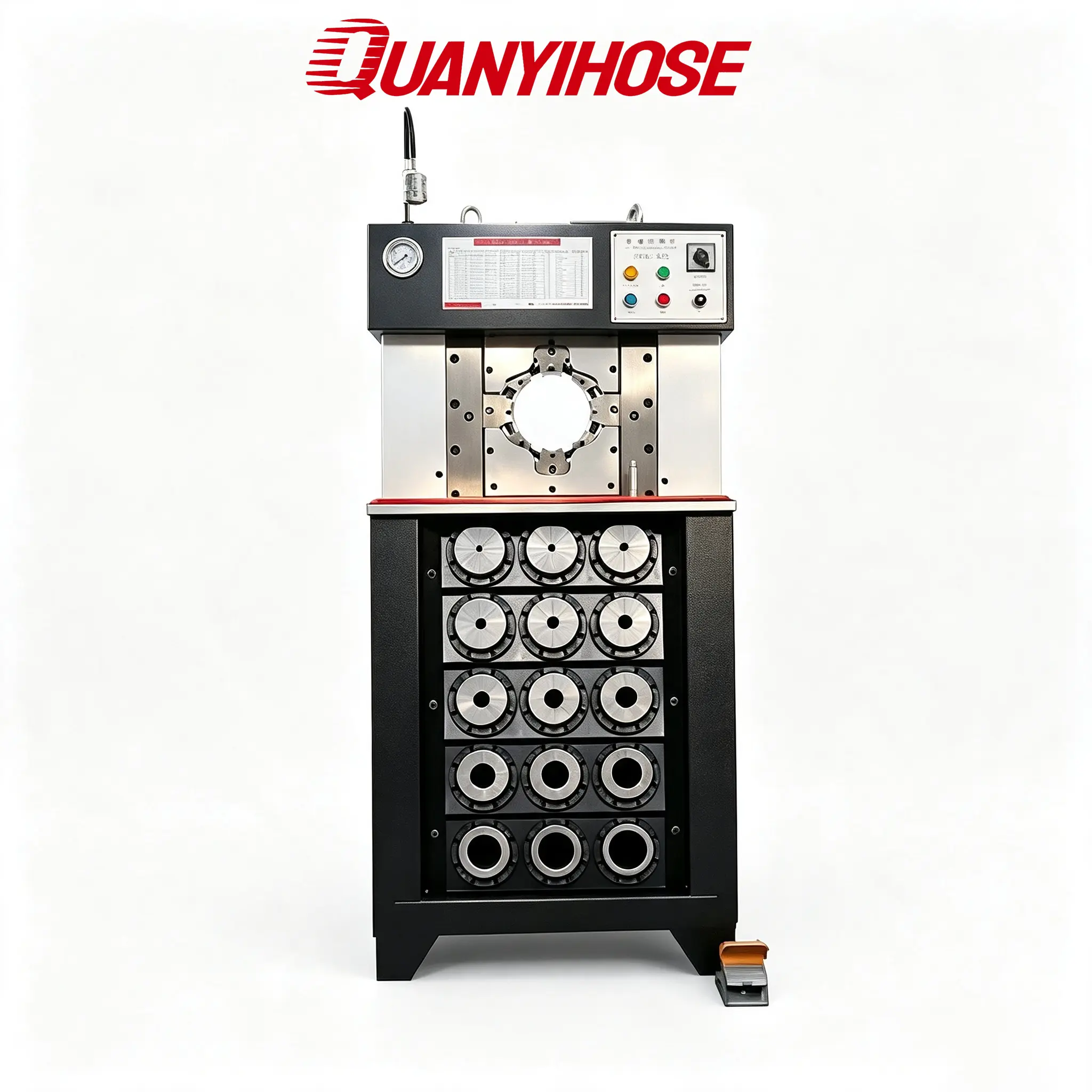

Hydraulic Hose Crimping Machine QY120A – 1/4-3inch
QY120A Hydraulic Hose Crimping Machine is a heavy-duty hose assembly machine designed for crimping hydraulic hoses from 6mm to 76mm.
Quick Specifications
| Model | QY120A |
|---|---|
| Crimping Range | 6-76 mm |
| Crimping Force | 2800 KN |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Quantity of Dies | 15 Sets |
SAE / DIN / EN Standards
100% Proof Tested
OEM Branding Available
MOQ Flexible
Overview
Product Overview
QY120A Hydraulic Hose Crimping Machine – Heavy Duty Equipment for Large Hose Assembly
Quanyi QY120A Hydraulic Hose Crimping Machine is a professional industrial hose crimper designed for high-volume hydraulic hose assembly production and maintenance applications. With a wide crimping range from 6mm to 76mm, this machine is suitable for various hydraulic hoses, industrial hoses and large-diameter hose assemblies.
Equipped with a powerful hydraulic system, QY120A provides 2800KN (approximately 285 tons) crimping force and 31.5MPa system pressure, ensuring strong and uniform compression between hoses and fittings. The advanced control system delivers 0.01mm crimping accuracy, helping users achieve consistent assembly quality.
The machine includes 15 sets of precision dies, allowing quick adjustment for different hose sizes. With a working efficiency of up to 300 pieces per hour, QY120A improves production capacity for hydraulic hose manufacturers, distributors and professional repair centers.
Its robust structure, high-pressure hydraulic system and reliable performance make QY120A an ideal solution for heavy-duty hose processing applications.
Key Features
Key Features
- Heavy-duty 2800KN crimping force for large hose applications
- Wide crimping range from 6mm to 76mm
- 15 sets of interchangeable precision dies included
- High accuracy control with 0.01mm tolerance
- Fast production efficiency up to 300 pieces/hour
- Stable 31.5MPa hydraulic system performance
- Suitable for large diameter hydraulic hose assembly
- Powerful 5.5KW motor for continuous operation
- Large 165mm maximum opening diameter
- Strong steel structure for industrial environments
- Compatible with various hose fittings and ferrules
- Custom voltage options available
Structure
Hose Structure
Hydraulic Power System
High-performance hydraulic pump provides stable pressure output and reliable operation for heavy-duty crimping.
Crimping Head
Precision-machined crimping chamber ensures even compression around hose fittings and improves assembly reliability.
Die Assembly System
Equipped with 15 sets of interchangeable dies for different hose diameters, enabling fast size changes.
Control Panel
Simple operation interface allows accurate control of crimping parameters and improves production efficiency.
Machine Frame
Heavy-duty steel construction provides excellent stability during high-force crimping operations.
Applications
Applications
Hydraulic hose manufacturing factories
Large hydraulic hose assembly production
Construction machinery repair centers
Mining equipment maintenance workshops
Agricultural machinery service facilities
Industrial equipment maintenance
Hydraulic service companies
OEM machinery manufacturers
Hydraulic hose distributors
High-pressure hose assembly workshops
Advantages
Why Choose This Product
High crimping force supports heavy-duty hose assembly applications
Suitable for large diameter hydraulic hoses up to 76mm
Excellent crimping consistency improves product quality
High production efficiency reduces labor costs
Heavy-duty construction ensures long service life
Precision control minimizes hose assembly errors
15 die sets provide wider application flexibility
Ideal for continuous industrial production
Stable hydraulic performance under demanding conditions
Factory direct supply with OEM customization available
Technical Data
Technical Specifications
| Model | QY120A |
|---|---|
| Crimping Range | 6-76 mm |
| Crimping Force | 2800 KN |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Quantity of Dies | 15 Sets |
| Pump Output | 10L |
| Motor Power | 5.5 KW |
| Voltage | 380V |
| Work Efficiency | 300 pcs/h |
| Maximum Opening Diameter | 165 mm |
| Maximum Die Expansion | +53 mm |
| Machine Dimension | 755×1045×1630 mm |
| Package Dimension | 840×1090×1760 mm |
| Net Weight | 1250 kg |
| Gross Weight | 1300 kg |
FAQ
Frequently Asked Questions
What is QY120A hydraulic hose crimping machine used for?
QY120A is used for manufacturing and repairing hydraulic hose assemblies, especially large diameter hydraulic hoses used in industrial and heavy equipment applications.
What is the crimping range of QY120A?
QY120A can crimp hydraulic hoses from 6mm to 76mm diameter.
How much crimping force does QY120A provide?
QY120A provides 2800KN crimping force for reliable hose fitting connections.
How many dies are included with QY120A?
The machine includes 15 sets of interchangeable dies for different hose sizes.
What industries use QY120A hose crimper?
It is widely used in hydraulic hose factories, construction machinery repair, mining equipment service and industrial maintenance.
What is the accuracy of QY120A hydraulic hose crimper?
The machine provides high precision crimping accuracy up to 0.01mm.
What power supply does QY120A require?
Standard QY120A uses 380V power supply, with customized voltage options available.
How efficient is QY120A hose crimping machine?
The machine can produce approximately 300 hose assemblies per hour depending on hose type and operator experience.
Can QY120A crimp large hydraulic hoses?
Yes, QY120A is specially designed for large diameter hydraulic hoses up to 76mm.
Can you provide OEM hydraulic hose crimping machines?
Yes, Quanyi provides customized machines with different specifications, voltage options and branding services.
