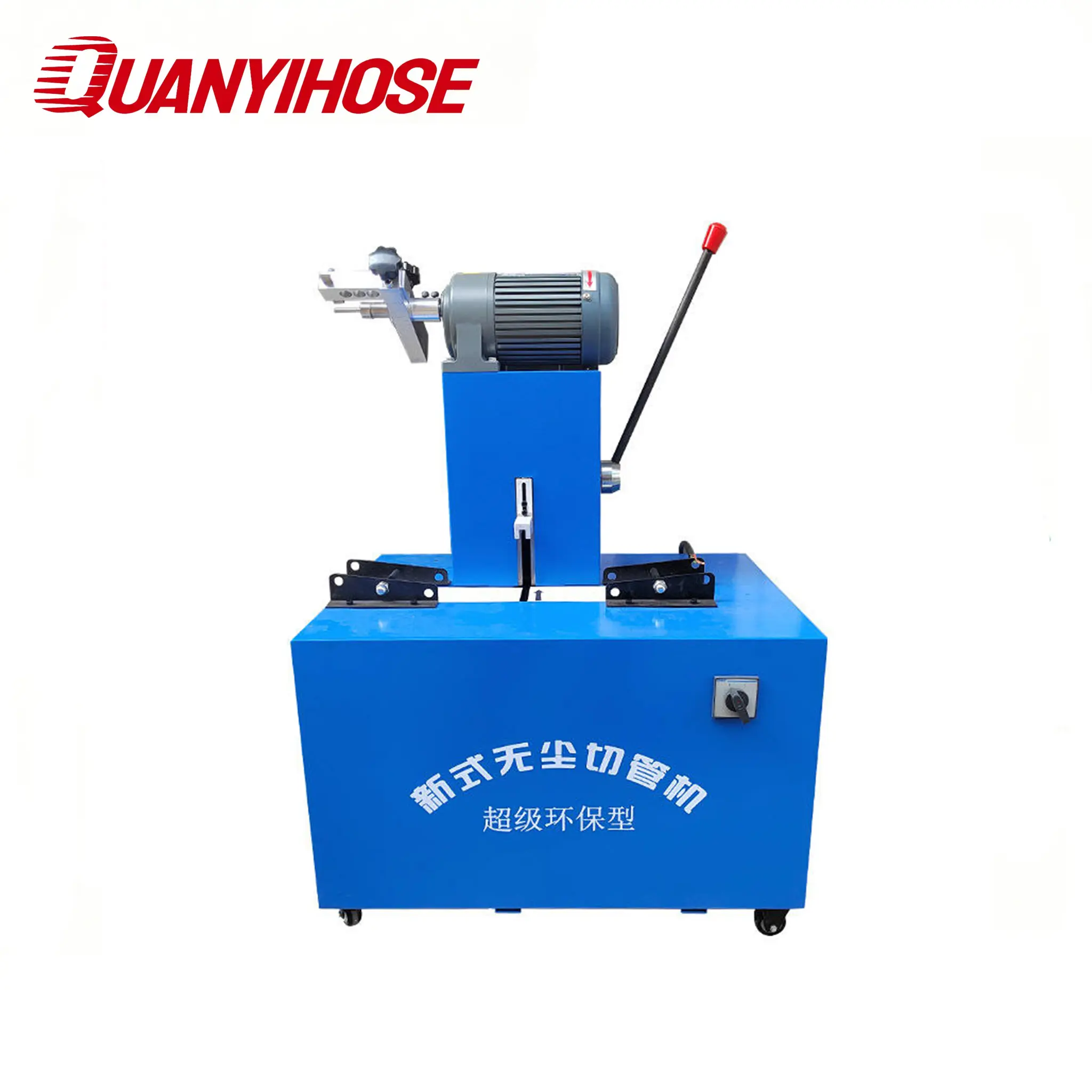

QY51BQ Hydraulic Hose Cutting and Skiving Machine (2 Inch / 6-51mm)
The QY51BQ integrated hydraulic hose cutting and skiving machine is designed for efficient 2-in-1 hose processing. Covering an internal diameter range of 6-51mm (1/4" to 2")
Quick Specifications
| Cutting & Skiving Range | 6-51 mm (1/4" - 2") |
|---|---|
| Motor Power | 3 kW / 4 kW |
| Voltage | 100V - 415V (50/60 Hz) |
| Work Efficiency | 1500 pcs/h |
| Machine Dimension | 550 * 780 * 900 mm |
| Package Dimension | 700 * 850 * 1000 mm |
SAE / DIN / EN Standards
100% Proof Tested
OEM Branding Available
MOQ Flexible
Overview
Product Overview
The QY51BQ Hydraulic Hose Cutting and Skiving Machine offers an all-in-one solution engineered specifically to streamline hydraulic hose preparation. By integrating both high-speed cutting and precision outer/inner skiving into a single compact benchtop structure, this machine eliminates the need for separate setups, saving valuable workshop space and reducing labor costs.
Equipped with a powerful 3kW / 4kW heavy-duty electric motor (compatible with 100V–415V, 50/60Hz multi-voltage setups), the QY51BQ handles high-pressure rubber hoses, wire-braided hoses, and steel wire spiral hydraulic hoses up to 2 inches (6-51 mm). The engineered cutting blade ensures clean, burr-free, and low-smoke cuts, preserving the integrity of the steel wire reinforcement. Meanwhile, the adjustable skiving assembly delivers consistent strip length and depth, guaranteeing optimal crimping performance for high-pressure hydraulic hose assemblies.
Whether you operate a hydraulic repair center, equipment manufacturing plant, or hose distribution shop, the QY51BQ guarantees maximum operational reliability, high speed (up to 1500 pcs/hour), and ergonomic safety.
Key Features
Key Features
- 2-in-1 integrated design combining cutting and skiving functions in one compact machine
- Wide processing range handling hydraulic hoses from 6mm to 51mm (1/4" to 2")
- High-speed processing capable of up to 1500 pieces per hour
- Powerful 3kW/4kW motor delivering smooth and effortless cutting performance
- Customizable voltage options from 100V to 415V (50/60Hz) for global compatibility
- Dust-free and low-smoke cutting blade designed for clean hose ends
- Precision skiving depth adjustment ensuring perfect fitting attachment
- Heavy-duty steel frame structure providing maximum stability during operation
Structure
Hose Structure
Heavy-duty steel base housing motor and electrical controls
Precision high-speed alloy cutting blade with safety protection cover
Adjustable hose positioning guide for accurate length control
Ergonomic manual handle lever for smooth cutting operation
Dedicated skiving tool head with micro-adjustable depth mechanism
Waste collection chute for quick cleanup and safe operation
Applications
Applications
Hydraulic Hose Assembly Workshops and Repair Centers
Construction and Heavy Machinery Maintenance
Agricultural Equipment Hydraulic System Servicing
Mining and Industrial Fluid Power Systems
OEM Hydraulic Hose Manufacturing Lines
Automotive and Marine Hose Fabrication
Advantages
Why Choose This Product
Dual-function versatility saves workshop floor space and reduces machinery investment costs
Drastically reduces labor time by streamlining hose cutting and skiving in one spot
Clean and precise cuts extend hose assembly life and prevent hydraulic contamination
Heavy-duty design engineered for continuous high-volume production environment
Easy tool-free maintenance and quick adjustment for different hose sizes
Technical Data
Technical Specifications
| Cutting & Skiving Range | 6-51 mm (1/4" - 2") |
|---|---|
| Motor Power | 3 kW / 4 kW |
| Voltage | 100V - 415V (50/60 Hz) |
| Work Efficiency | 1500 pcs/h |
| Machine Dimension | 550 * 780 * 900 mm |
| Package Dimension | 700 * 850 * 1000 mm |
| Net Weight | 98 kg |
| Gross Weight | 105 kg |
| Operation Type | Semi-automatic / Integrated |
| Applicable Hoses | 1-4 Wire Braided & Spiral Hydraulic Hoses |
FAQ
Frequently Asked Questions
What range of hydraulic hoses can the QY51BQ handle?
The QY51BQ machine processes hydraulic hoses with internal diameters ranging from 6mm to 51mm (1/4 inch to 2 inches).
Can this machine cut 4-spiral steel wire hydraulic hoses?
Yes, the high-torque 3kW/4kW motor and durable steel blade easily cut through wire-braided and 4-wire spiral hydraulic hoses.
Does the machine support custom voltage standard for my country?
Yes, the electrical system supports single-phase and three-phase voltages from 100V to 415V at 50Hz or 60Hz.
Is the blade replaceable, and how long does it last?
Yes, the high-alloy cutting blade is easily replaceable and can be resharpened multiple times for long-term service life.
Does it require specialized training to operate?
No, the QY51BQ features an intuitive design with manual stroke control that allows operators to work safely with minimal training.
Request a Quote
Get a Quotation for QY51BQ Hydraulic Hose Cutting and Skiving Machine (2 Inch / 6-51mm)
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
