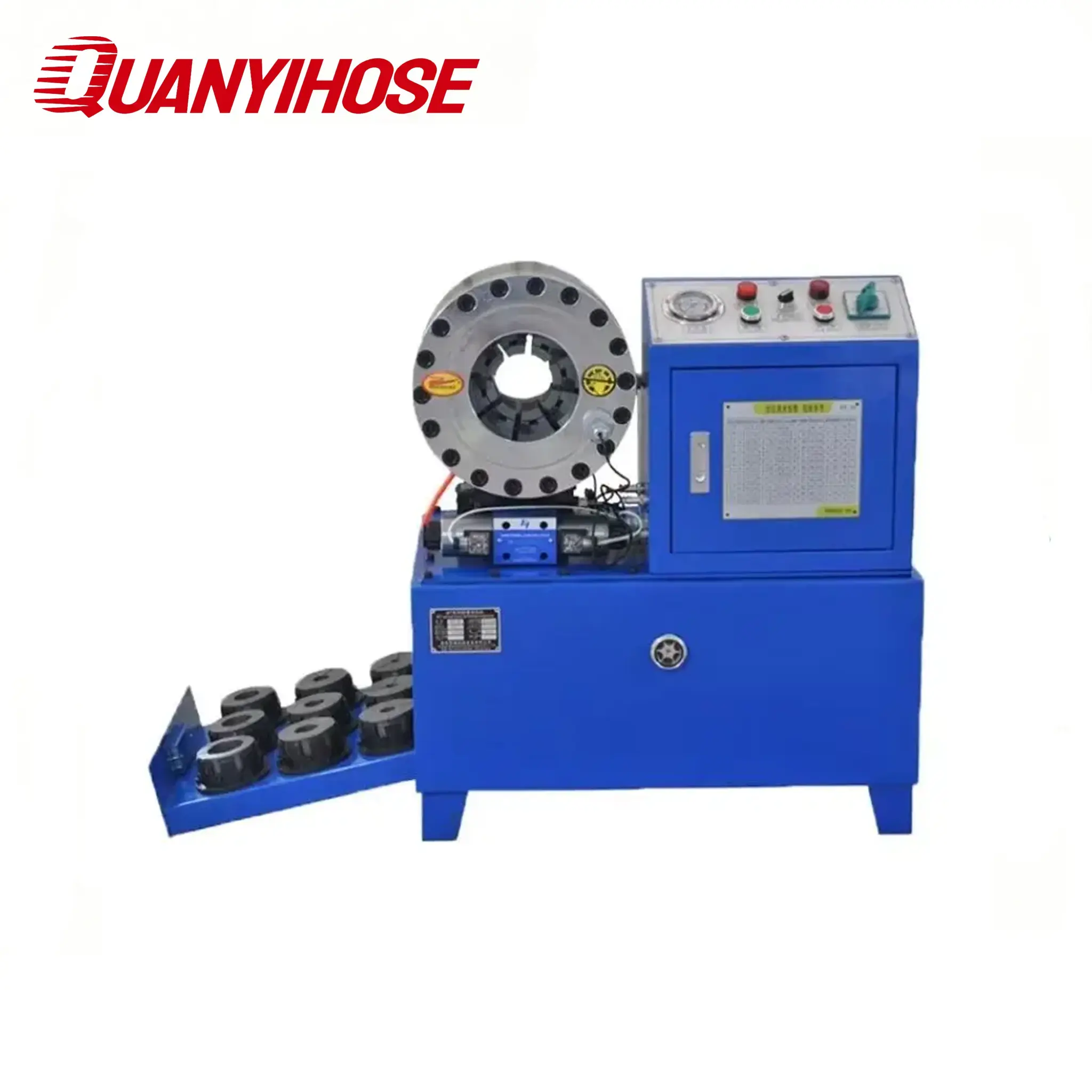

Hydraulic Hose Crimping Machine-QY51WS
QY51WS Hydraulic Hose Crimping Machine is a professional hose assembly machine designed for hydraulic hose fitting crimping from 6mm to 51mm.
Quick Specifications
| Model | QY51WS |
|---|---|
| Crimping Range | 6-51 mm |
| Crimping Force | 300T |
| System Pressure | 31.5 MPa |
| Crimping Accuracy | 0.01 mm |
| Die Quantity | 10 Sets |
SAE / DIN / EN Standards
100% Proof Tested
OEM Branding Available
MOQ Flexible
Overview
Product Overview
QY51WS Hydraulic Hose Crimping Machine – Professional Equipment for Hydraulic Hose Assembly
Quanyi QY51WS Hydraulic Hose Crimping Machine is designed for manufacturing and repairing hydraulic hose assemblies with high precision and stable performance. It is suitable for crimping hydraulic hoses, industrial hoses and various hose fittings from 6mm to 51mm.
Equipped with a powerful hydraulic system, the machine provides 300T crimping force and 31.5MPa system pressure, ensuring reliable and uniform crimping results. The high-precision control system achieves 0.01mm crimping accuracy, helping users produce consistent hose assemblies and reduce production errors.
The QY51WS features a compact structure, easy operation and interchangeable die sets, making it an ideal choice for hydraulic hose distributors, repair workshops, machinery manufacturers and industrial hose producers.
Key Features
Key Features
- 300T powerful crimping force for reliable hose assembly
- Wide crimping range from 6mm to 51mm
- High precision control with 0.01mm accuracy
- 10 sets of standard dies included
- Fast crimping efficiency up to 200 pcs/hour
- Strong hydraulic system with 31.5MPa working pressure
- Compatible with various hydraulic hose fittings
- Stable performance for continuous operation
- Compact design saves workshop space
- Available with customized voltage options
Structure
Hose Structure
Hydraulic System
High-performance hydraulic pump provides stable pressure output and smooth operation during crimping.
Crimping Head
Precision-machined crimping head ensures uniform compression around hose fittings.
Die Sets
Equipped with 10 sets of interchangeable dies to meet different hose diameter requirements.
Control System
Simple control panel allows easy adjustment and accurate crimping operation.
Motor Unit
Powerful 3KW/4KW motor provides reliable operation for industrial applications.
Applications
Applications
Hydraulic hose assembly production
Hydraulic repair workshops
Construction machinery maintenance
Agricultural machinery service centers
Mining equipment maintenance
Automotive hydraulic hose repair
Industrial hose manufacturing factories
Hydraulic component distributors
OEM machinery production lines
Mobile hydraulic service vehicles
Advantages
Why Choose This Product
High precision crimping improves hose assembly reliability
Powerful hydraulic force supports professional applications
Suitable for different hydraulic hose sizes and fittings
Easy operation reduces worker training time
Strong machine structure ensures long service life
Fast production efficiency improves workshop productivity
Compact design saves installation space
Low maintenance requirements and stable performance
Suitable for distributors, workshops and manufacturers
Factory direct supply with OEM customization available
Technical Data
Technical Specifications
| Model | QY51WS |
|---|---|
| Crimping Range | 6-51 mm |
| Crimping Force | 300T |
| System Pressure | 31.5 MPa |
| Crimping Accuracy | 0.01 mm |
| Die Quantity | 10 Sets |
| Work Efficiency | 200 pcs/h |
| Maximum Opening | Diameter 114 mm |
| Motor Power | 3KW/4KW |
| Voltage | 220V/240V/380V/415V Optional |
| Machine Dimension | 730×475×780 mm |
| Net Weight | 245 kg |
| Gross Weight | 260 kg |
FAQ
Frequently Asked Questions
What is a hydraulic hose crimping machine?
A hydraulic hose crimping machine is equipment used to permanently attach hose fittings by compressing metal ferrules around hydraulic hoses.
What hoses can QY51WS crimp?
QY51WS can crimp hydraulic hoses and industrial hoses with diameters from 6mm to 51mm.
What is the maximum crimping force of QY51WS?
The QY51WS hydraulic hose crimping machine provides 300 tons of crimping force.
How accurate is the QY51WS hose crimper?
The machine provides high precision crimping with accuracy up to 0.01mm.
How many dies are included with the machine?
QY51WS comes with 10 sets of standard dies for different hose sizes.
Can this machine be used for hydraulic repair shops?
Yes, QY51WS is widely suitable for hydraulic repair centers, maintenance workshops and hose service providers.
What power supply does the machine require?
The machine supports customized voltage options including 220V, 240V, 380V and 415V.
How many hoses can QY51WS produce per hour?
The machine can achieve approximately 200 hose assemblies per hour depending on hose type and operator experience.
Can you provide customized hydraulic hose crimping machines?
Yes, Quanyi provides OEM customization including machine specifications, voltage and branding.
Why choose Quanyi QY51WS hose crimping machine?
Quanyi provides reliable hydraulic equipment with factory-direct pricing, strict quality control and professional technical support.
