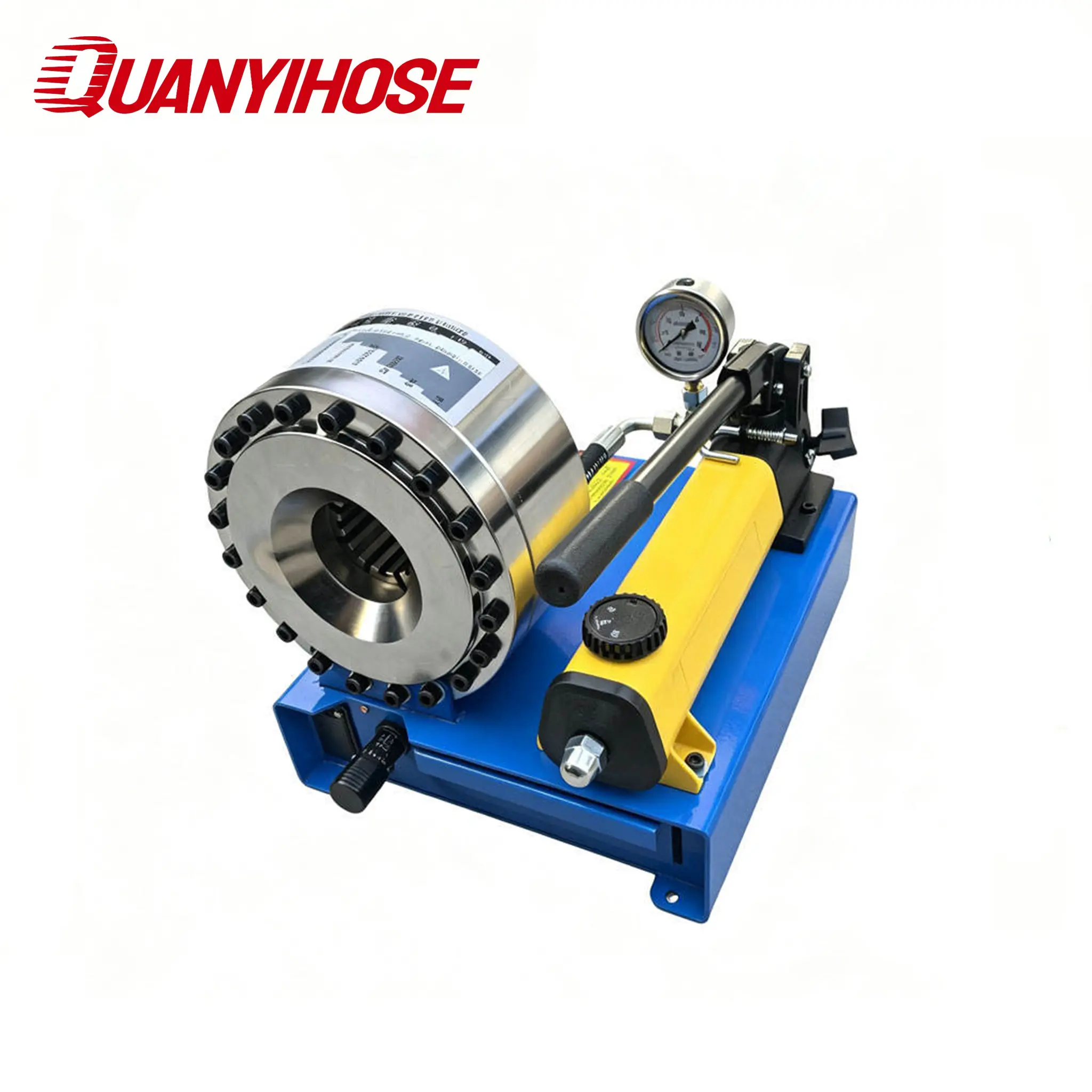

QY25SD Portable Manual Hydraulic Hose Crimping Machine (1 Inch / 10-27mm)
The QY25SD portable manual hydraulic hose crimper is designed for fast, reliable field service and on-site hydraulic hose repairs.
Quick Specifications
| Crimping Range | 10-27 mm (1/8" - 1") |
|---|---|
| Quantity of Dies | 7 sets |
| Output Volume of Pump | 1 L |
| System Pressure | 70 MPa during testing (shall not exceed 35 MPa in use) |
| Work Efficiency | 10 pcs/h |
| Machine Dimension | 320 * 380 * 280 mm |
SAE / DIN / EN Standards
100% Proof Tested
OEM Branding Available
MOQ Flexible
Overview
Product Overview
The QY25SD Portable Manual Hose Crimping Machine delivers professional-grade hydraulic hose crimping performance in a lightweight, electricity-free design. Specially engineered for field service technicians, outdoor maintenance crews, and mobile repair vans, this manual crimper empowers operators to complete high-pressure hose crimping anytime, anywhere.
Equipped with a high-efficiency hand pump (1L oil output) and robust hand-operated hydraulics, the QY25SD offers a powerful maximum system pressure up to 70 MPa (recommended operating pressure <= 35 MPa). It easily handles hydraulic hoses with inside diameters ranging from 10mm to 27mm (1/8" to 1"). The machine includes 7 precision die sets that are easy to change, allowing seamless adjustments for various hose sizes and fitting types.
Weighing only 35 kg with dimensions of 320*380*280 mm, the QY25SD is exceptionally easy to carry, store, and set up on job sites. Whether you are performing emergency repairs on agricultural tractors, mining machinery, or construction excavators far from power sources, the QY25SD provides a reliable, durable, and accurate crimping solution.
Key Features
Key Features
- Portable non-electric hand-pump operation suitable for all outdoor environments
- Crimping capacity covering 10mm to 27mm hydraulic hoses (up to 1 inch)
- Includes 7 interchangeable die sets for versatile fitting sizes
- Heavy-duty hand pump with 1L oil displacement providing steady hydraulic force
- Integrated pressure gauge for real-time monitoring during crimping
- Ultra-compact desktop design with net weight of only 35 kg
- Precision micro-dial adjustment ensuring repeatable crimping diameter accuracy
- Rugged steel frame built to withstand tough job-site conditions
Structure
Hose Structure
High-strength steel crimping head with quick-change die housing
Manual hydraulic piston hand pump with ergonomic grip handle
Calibrated pressure gauge displaying system hydraulic pressure
Precision micrometer dial for crimping diameter adjustment
Solid steel base frame designed for stable tabletop or floor operation
Oil reservoir container with secure fill plug
Applications
Applications
Mobile Hydraulic Hose Repair Service Trucks
Outdoor Construction and Excavation Site Maintenance
Agricultural and Farm Equipment Field Servicing
Forestry and Logging Machinery Hydraulic Repairs
Mining and Energy Exploration Remote Sites
Small Repair Shops and Maintenance Depots
Advantages
Why Choose This Product
Zero power reliance allows full operational flexibility in remote field locations
Lightweight and compact dimensions make transport in service vehicles effortless
Cost-effective alternative to heavy electrical crimpers for small-scale and emergency jobs
Quick die replacement system minimizes downtime during field repairs
Durable mechanical construction ensures long-term maintenance-free operation
Technical Data
Technical Specifications
| Crimping Range | 10-27 mm (1/8" - 1") |
|---|---|
| Quantity of Dies | 7 sets |
| Output Volume of Pump | 1 L |
| System Pressure | 70 MPa during testing (shall not exceed 35 MPa in use) |
| Work Efficiency | 10 pcs/h |
| Machine Dimension | 320 * 380 * 280 mm |
| Package Dimension | 350 * 400 * 360 mm |
| Net Weight | 35 kg |
| Gross Weight | 40 kg |
| Operation Type | Manual Hand-Pump Hydraulics |
| Power Source | Manual / Non-electric |
FAQ
Frequently Asked Questions
Does the QY25SD manual hose crimper require electrical power?
No, the QY25SD is 100% manually operated via a built-in hydraulic hand pump, making it completely independent of power supply.
What size hydraulic hoses can this machine crimp?
It can crimp hydraulic hoses with outer sleeve diameters in the range of 10mm to 27mm (approx. 1/8" to 1" hose size).
How many die sets come standard with the QY25SD?
The machine comes standard with 7 complete sets of precision crimping dies.
Is the QY25SD easy to transport in a mobile service truck?
Yes, with a compact size of 320380280mm and a net weight of 35kg, it easily fits into service vans and truck toolboxes.
What is the maximum operating hydraulic pressure recommended?
The system is tested up to 70 MPa, but normal recommended working pressure should not exceed 35 MPa.
